APM203 VSD Booster Pump

APM203 VSD Booster Pump Intelligent Pressure Control for Demanding Water Systems

The APM203 VSD Booster Pump is a smart, variable-speed pressure system designed to provide ultra-efficient, constant water pressure across a wide range of residential, commercial, and industrial applications. With its built-in Variable Speed Drive (VSD) technology, this unit automatically adjusts motor speed to meet real-time demandsaving energy, reducing wear, and ensuring smooth water flow at all times.

The APM203 is a small compact variable speed booster set pump and is supplied complete with in-built controls which means no complicated menus associated with other VSD boosters.

Advanced Water Boosting, Made Simple

Whether youre managing a multi-outlet home, a commercial building, or an irrigation system, the APM203 delivers stable water pressure without surges or drops. Its especially effective in properties with fluctuating demand or inconsistent supplymaking it ideal for mains boosting, rainwater harvesting, and light industrial use.

Perfect for:
Large domestic water systems
Offices, hotels, or apartment blocks
Multi-outlet bathrooms & high-demand homes
Garden irrigation systems
Commercial and light industrial applications

Using the most up to date technology, the APM203 variable speed booster pump, supplied by Henry Pumps are user friendly to create constant pressure according to the system requirements and therefore optimise energy consumption.  Almost all of the programming is pre-set which means all you have to do is plumb in the pump, prime it, set the pressure and away you go.  The system takes care of the rest!

Key Features & Benefits:

Variable Speed Drive (VSD) Adjusts pump speed to meet changing demand in real-time
Constant Pressure Output Maintains steady pressure at all outlets
Energy-Efficient Operation Uses only the power needed, reducing electricity costs
Quiet Running Motor Ideal for residential or low-noise environments
Built-In Digital Controller Easy to operate with pressure readouts and diagnostics
Dry-Run & Overload Protection Keeps your pump safe and long-lasting
Compact, All-in-One Design Neat footprint for plant rooms, cabinets or garages

Dry run protection built-in as standard as well as pressure vessel and transducer integrated within.

For use in domestic systems, gardening and small industrial applications.

1 inch BSP threaded ports.
Built in non-return valves.

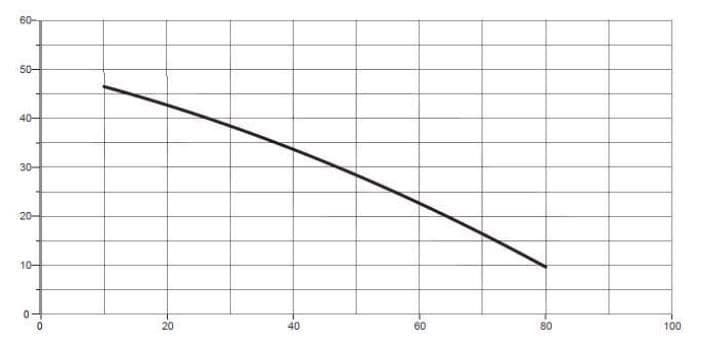

OPERATING RANGE: flow rate up to 80l/min, head up to 50m (5.0 Bar).

PUMPED LIQUID: clean water only, free from solids or abrasive substances, non viscous, non aggressive, non crystalized and not chemically neutral.

LIQUID TEMPERATURE RANGE: from 0°C to + 60°C.

Smart Technology for Smarter Water Systems

The APM203 VSD combines powerful water pressure with intelligent controlseliminating the need for external pressure switches or expansion vessels. Its plug-and-play ready, making installation and operation straightforward for both pros and end-users.

NOT Self Priming, needs to be installed on flooded suction applications.

Why Choose the APM203 VSD Booster Pump?

• Superior pressure stability for multiple outlets

• Smart energy-saving performance

• Modern, compact design with minimal maintenance

• Quiet and reliable for 24/7 use

• Backed by expert support from Henry Pumps

Give your water system the boost it needs intelligently and efficiently. The APM203 VSD Booster Pump is your go-to solution for consistent water pressure, energy savings, and future-proof performance.

Order today and experience smarter water pressure control only at Henry Pumps.
