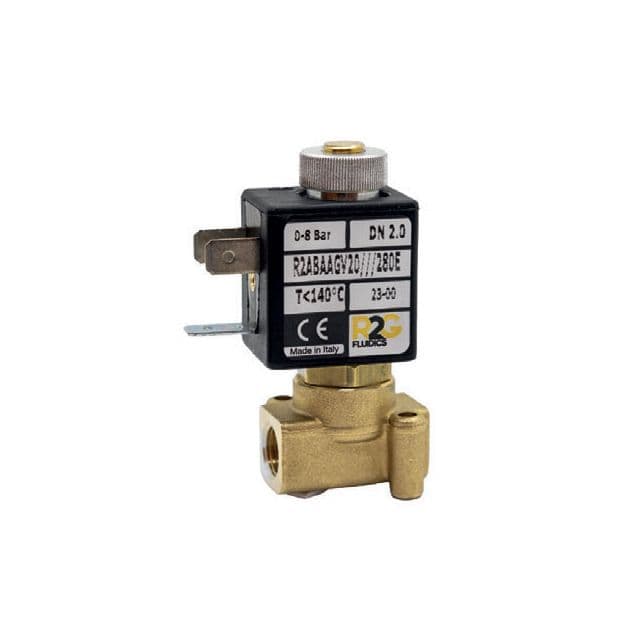

Brass Solenoid Valve ⅛″ (Direct-Acting 2/2)

The Henry Pumps Brass Solenoid Valve – Direct Acting 2/2 Way offers a robust and reliable solution for fluid control in demanding industrial and commercial applications. With a high-quality brass body, Viton diaphragm and direct-acting (2/2 way, normally closed) design, this solenoid valve delivers fast, precise operation at zero minimum pressure and up to 16 bar (AC) or 8 bar (DC) maximum.

Ideal for water, air or other compatible fluids, this valve provides durable performance, compact size and flexible voltage options (24 V AC, 24 V DC, 230 V AC).

Key Features & Benefits

• ✅ Direct Acting 2/2 Way, Normally Closed – ensures positive shut-off and reliable activation when energized.

• ✅ Brass Body (CW617N) – offers excellent corrosion resistance and mechanical strength.

• ✅ Viton Diaphragm Seal – high-temperature resistance and chemical compatibility for longer life.

• ✅ Zero Minimum Pressure – suitable for low-pressure systems and applications where pump startup or low differential pressures exist.

• ✅ Voltage Flexibility – available in 24 V DC, 24 V AC and 230 V AC versions for maximum versatility.

• ✅ Wide Temperature Range – operating from -10 °C up to +160 °C, suitable for hot water and compatible steam applications.

• ✅ Compact & Standardised Fitting – BSP threaded connections for simple, leak-free installation.

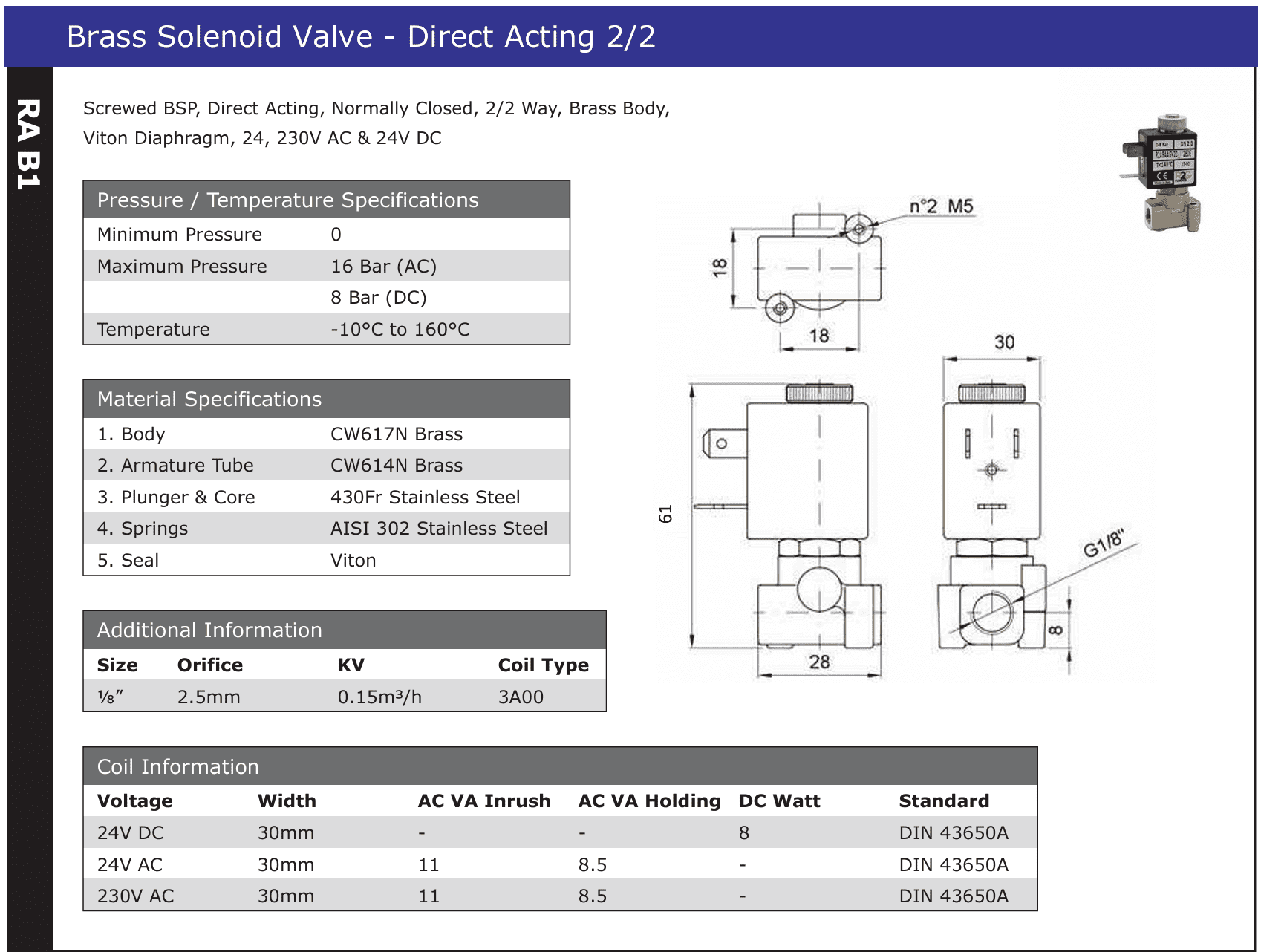

Technical Specifications

Applications

Perfect for use in:

• Water treatment systems and equipment

• HVAC and heating plant installations

• General industrial fluid control

• Pump discharge, bypass circuits, and automatic feed/drain loops

• Air, inert gases and compatible fluids

• Any low-pressure or zero-pressure system requiring a compact solenoid valve

Why Choose Henry Pumps?

At Henry Pumps, we don’t just sell valves - we supply complete pump and fluid control solutions. Choosing our brass solenoid valve means:

• Expert technical advice from our experienced team

• Full UK stock and support

• Integration into pump packages and control systems

• Trusted quality and after-sales service

Installation & Maintenance Tips

• Ensure BSP threads are correctly sealed (use PTFE tape or suitable gasket).

• Confirm electrical supply matches the valve coil (voltage and AC/DC type).

• Avoid rapid cycling beyond recommended duty cycles.

• For high-temperature or aggressive media, check compatibility with brass/Viton.

• Periodically inspect for leaks, coil overheating or diaphragm wear.

Compliance & Standards

Manufactured to strict quality and performance standards using high-grade brass and stainless-steel components. Suitable for industrial, commercial and OEM applications.
