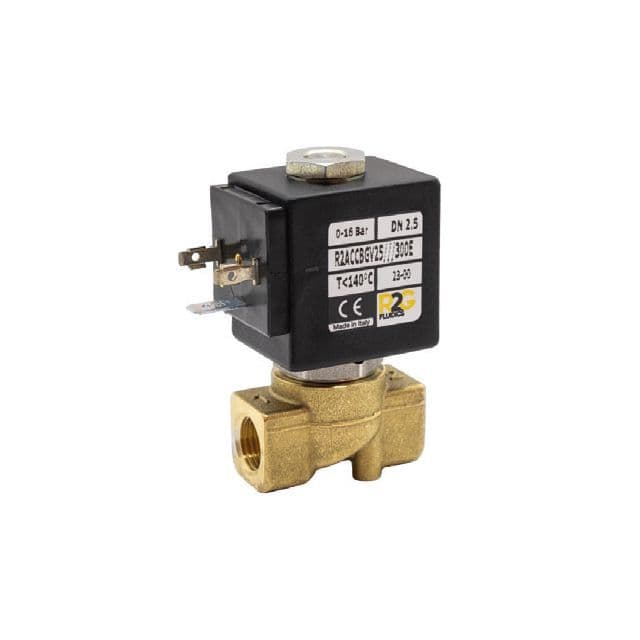

Brass Solenoid Valve (Direct-Acting 2/2)

The Henry Pumps RAC1 Brass Solenoid Valve – Direct Acting 2/2 Way is a high-quality valve designed for precise and reliable control of air, water, oil and other compatible fluids. With a compact, heavy-duty brass body, Viton diaphragm, and direct-acting mechanism, this valve provides rapid operation and consistent performance without requiring any minimum pressure.

Built for durability and versatility, the RAC1 series performs exceptionally well in demanding applications such as automation systems, water treatment, process control, and general industrial installations.

Key Features & Benefits

• ✅ Direct Acting 2/2 Way, Normally Closed – offers immediate shut-off when de-energised, ideal for safety-critical systems.

• ✅ Robust Brass Construction (CW617N) – ensures long service life and excellent corrosion resistance.

• ✅ Viton Diaphragm – provides superior sealing, chemical resistance and high-temperature performance.

• ✅ Zero Minimum Pressure – operates effectively even in gravity-fed or low-pressure circuits.

• ✅ Multiple Voltage Options – available in 24 V DC, 24 V AC, and 230 V AC to suit a wide range of installations.

• ✅ Temperature Range from -10 °C to +160 °C – suitable for hot water and light oil duties.

• ✅ Compact Body Design – simple to install and maintain, compatible with BSP threaded connections.

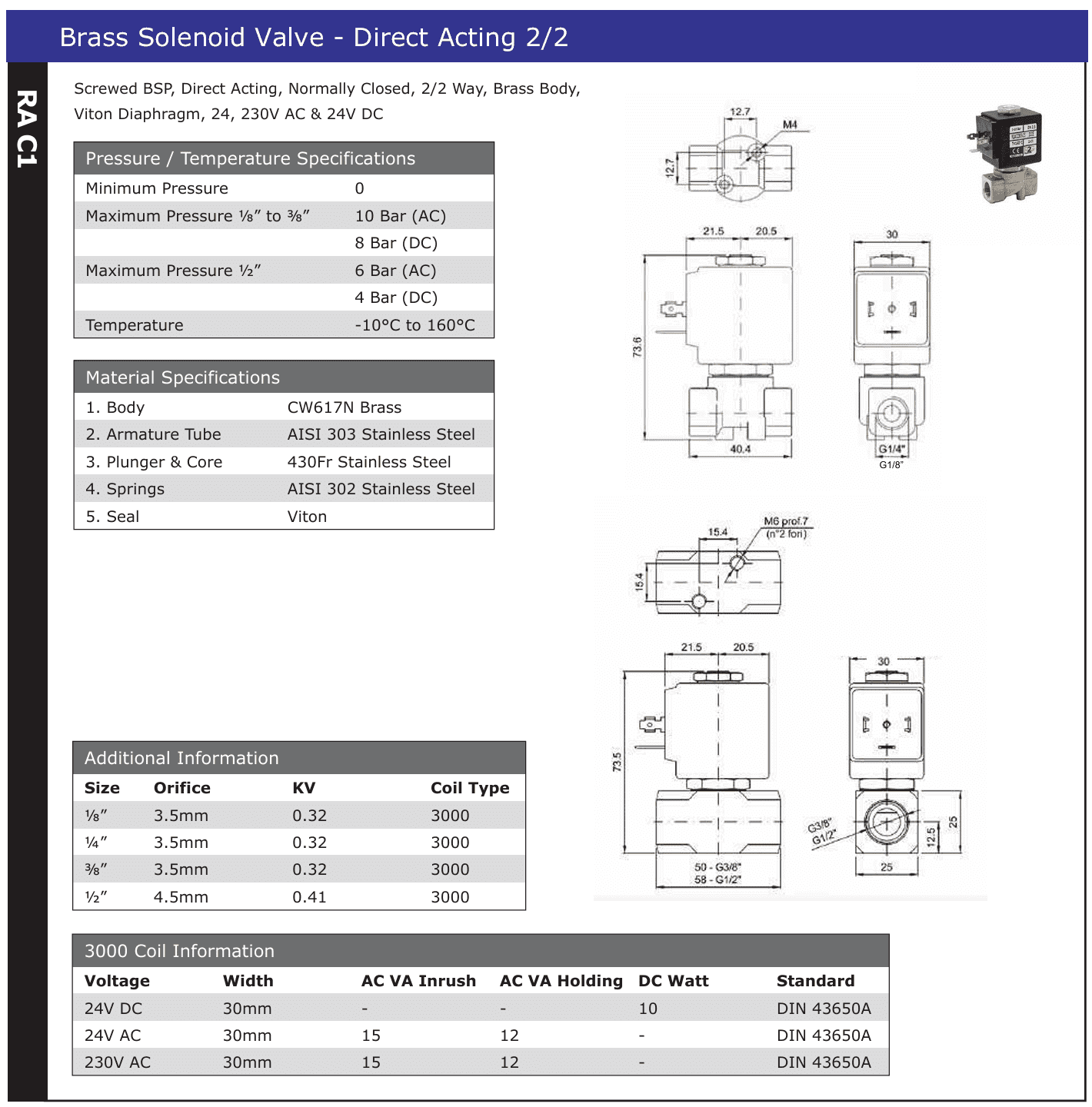

Technical Specifications

Applications

Ideal for use in:

• Water treatment and dosing systems

• Process control and automation

• Heating, ventilation and air conditioning (HVAC)

• Industrial machinery and pneumatic circuits

• Pump discharge and recirculation systems

• Compressed air, inert gas and compatible liquid applications

Why Choose Henry Pumps?

At Henry Pumps, we deliver reliable, engineered flow solutions — not just components. Every solenoid valve is part of a complete system offering:

• Expert specification and technical support

• Quality components from trusted European manufacturers

• Competitive UK pricing and stock availability

• Integration with pumps, hoses and fittings for full system solutions

Installation & Maintenance Tips

• Ensure correct orientation and clean pipework before installation.

• Use suitable sealing methods (PTFE tape or approved sealant).

• Match coil voltage and supply type (AC/DC).

• Periodically check diaphragm condition and coil temperature.

• Clean the valve internals if used with contaminated fluids to maintain performance.

Compliance & Standards

Manufactured to strict ISO and CE standards for consistent performance, safety and reliability. Materials conform to European brass and elastomer specifications.

Contact Us

📞 Phone: 0333 050 3748
✉️ Email: sales@henrypumps.co.uk

For quotations, technical advice or bulk enquiries - speak to our pump and valve specialists today!
