Information
Our MAM range from Caprari is the ideal choice for pumping sewage, screened waste water, industrial process effluents, waste water from small blocks of flats or individual homes.
Two types are available, according to the different pumping requirements.

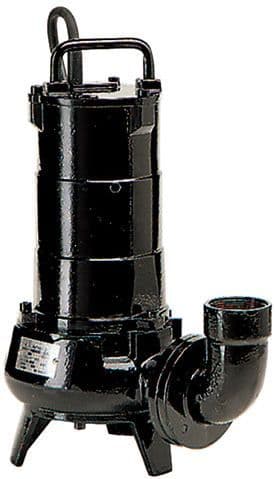

Complete with single-channel impeller, the Caprari MAM gives outstanding performance even in the roughest waste water applications including toilet waste, septic tanks, sewage plants, annex conversions and so on.
On request, these pumps can be supplied with flange connection for automatic coupling.
SPECIFICATIONS:
- max. temperature of pumped fluid = 40°C;
- max. immersion depth = 20 m;
- pH of the pumped fluid: 6 ÷ 10;
- mains voltage values and relative tolerated
variation in relation to the rated voltage value:
- single-phase:
220 V - 230 V ±6% standard
230 V - 240 V ±6% on request
- threephase:
400 V ±10% (380-400-415) standard
230 V ±10% (220-230-240) on request
- other voltage values with ±5% on request
- maximum unbalance in relation to power draw: 5%
- contact our technical offices if the density exceeds
1 Kg/dm3 and/or the viscosity exceeds 1 mm2/s
(1 cSt)
- the electric pump generates an acoustic pressure level of less than 70 dB(A).
INSTALLATION
The electric pump must be installed in the sump and can be used:
- connected to a hose
- with pipe connected to the threaded delivery outlet
- automatic operation can be achieved by means of the relative equipment.
CONSTRUCTION
- impeller:
- open recessed for MAV models;
- single-channel for MAM models
- front mechanical seal
- built-in protection against overheating is standard supply on single-phase models
- capacitor in single-phase models installed in a special external control box equipped with plug and connected to the end of the power cable
- motor in oil bath, insulation class F, protection degree IP68.
- stainless steel screws and nuts.
Two types are available, according to the different pumping requirements.
Complete with single-channel impeller, the Caprari MAM gives outstanding performance even in the roughest waste water applications including toilet waste, septic tanks, sewage plants, annex conversions and so on.
On request, these pumps can be supplied with flange connection for automatic coupling.
SPECIFICATIONS:
- max. temperature of pumped fluid = 40°C;
- max. immersion depth = 20 m;
- pH of the pumped fluid: 6 ÷ 10;
- mains voltage values and relative tolerated
variation in relation to the rated voltage value:
- single-phase:
220 V - 230 V ±6% standard
230 V - 240 V ±6% on request
- threephase:
400 V ±10% (380-400-415) standard
230 V ±10% (220-230-240) on request
- other voltage values with ±5% on request
- maximum unbalance in relation to power draw: 5%
- contact our technical offices if the density exceeds
1 Kg/dm3 and/or the viscosity exceeds 1 mm2/s
(1 cSt)
- the electric pump generates an acoustic pressure level of less than 70 dB(A).
INSTALLATION
The electric pump must be installed in the sump and can be used:
- connected to a hose
- with pipe connected to the threaded delivery outlet
- automatic operation can be achieved by means of the relative equipment.
CONSTRUCTION
- impeller:
- open recessed for MAV models;
- single-channel for MAM models
- front mechanical seal
- built-in protection against overheating is standard supply on single-phase models
- capacitor in single-phase models installed in a special external control box equipped with plug and connected to the end of the power cable
- motor in oil bath, insulation class F, protection degree IP68.
- stainless steel screws and nuts.
Specifications
-
Condition:New
-
Product Code:880520
-
Weight:29kg
