Cast Iron Inline Y Strainer PN16

Cast Iron Y-Strainer – Flanged PN16, Stainless Steel Mesh Screen

The Cast Iron Y-Strainer is an essential pipeline protection component, designed to filter out unwanted solids and debris from fluid systems, helping to safeguard downstream equipment such as pumps, valves, meters, and control devices. Built with a robust cast iron body and a corrosion-resistant stainless steel mesh screen, this PN16-rated Y-strainer is ideal for water, heating, process, and industrial systems.

Featuring a flanged connection for secure installation into PN16 piping systems, it offers low pressure drop, easy maintenance, and long-term durability. The Y-pattern body includes a bolted screen cover for straightforward access, making cleaning and servicing efficient and hassle-free.

Key Features:

✅ Cast Iron Body (EN-GJL-250) – Strong, durable, and pressure rated to PN16
✅ Stainless Steel Strainer Mesh – Rust-resistant and highly effective at particle filtration
✅ Flanged PN16 Ends – Easy integration with industry-standard pipework
✅ Y-Pattern Design – Ensures low flow resistance and efficient debris collection
✅ Blow-Off Plug – Allows optional drain valve for quick cleaning
✅ Bolted Cap – Enables fast access to internal strainer for maintenance
✅ Max Temperature: Up to 300°C (dependent on gasket material)

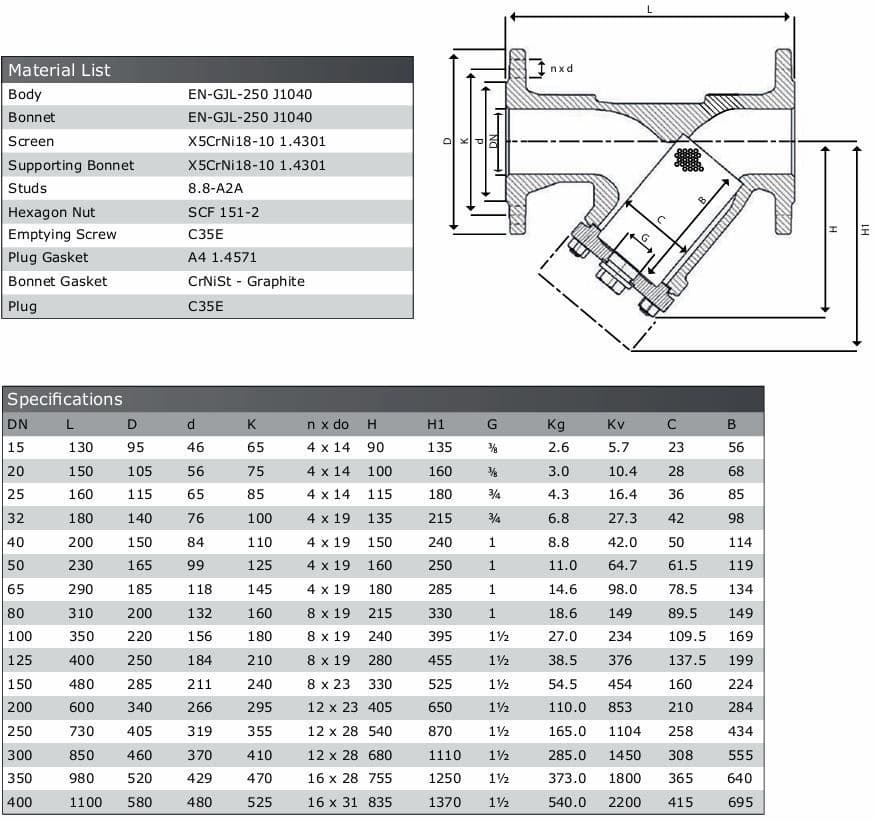

Technical Specifications:

• Body Material: Cast Iron (EN-GJL-250)

• Screen Material: Stainless Steel AISI 304

• Gasket: Graphite (suitable for high temperature)

• End Connection: PN16 Flanged (to EN 1092-2)

• Pressure Rating: PN16

• Working Temperature Range: -10°C to +300°C

• Sizes Available: DN50 to DN300

• Installation Orientation: Horizontal or vertical (downward flow)

Ideal Applications:

• Water Treatment Systems

• Heating & Cooling Circuits (HVAC)

• Pump & Valve Protection

• Process & Industrial Piping

• Irrigation & Agricultural Systems

• Firefighting and Utility Water Lines

Protect Your System with Reliable Inline ​​​​​​​Filtration

The Henry Pumps Cast Iron Y-Strainer is a cost-effective, long-lasting choice for mechanical protection and sediment filtration in a wide variety of systems. With rugged cast iron construction, stainless steel internals, and easy maintenance access, this strainer is engineered to keep your pipelines flowing clean and trouble-free.

📞 Need help selecting the right strainer size or screen mesh?
Contact the technical team at Henry Pumps for guidance and stock availability.

📩 sales@henrypumps.co.uk
📞 0333 050 3748
