Cast Iron Swing Check Valve PN16 Flanged

Cast Iron Swing Check Valve PN16 Flanged, EPDM Seat for Backflow Prevention

This Cast Iron Swing Check Valve is a reliable, self-acting non-return valve designed to prevent reverse flow in pumping systems, water mains, process pipelines, and other pressurised fluid networks. Built with robust cast iron construction, PN16-rated flanged ends, and a resilient EPDM seat, this valve ensures tight sealing, long service life, and dependable performance across a wide range of liquid-handling applications.

Its swing-type mechanism allows for full flow with minimal resistance in the forward direction, while closing immediately under reverse flow, protecting pumps and pipework from pressure surges and backflow damage.

Key Features:

Durable Cast Iron Body Engineered for long-lasting use under pressure
Flanged PN16 Connections Easy to install into standard pipework systems
EPDM Seat Offers excellent sealing and chemical resistance for water and process fluids
Self-Closing Swing Disc Prevents backflow without external control or power
Low Head Loss Design Allows free-flowing operation with minimal pressure drop
Silent Operation Quiet closure avoids water hammer in sensitive systems
Top Access Cover Simplifies inspection and maintenance

Ideal Applications Include:

• Clean Water & Potable Water Networks

• Pumping Stations & Booster Sets

• Irrigation & Agricultural Systems

• Industrial Water Treatment Plants

• HVAC & Closed Loop Circuits

• Wastewater Transfer (non-slurry)

• Rainwater & Stormwater Management Systems

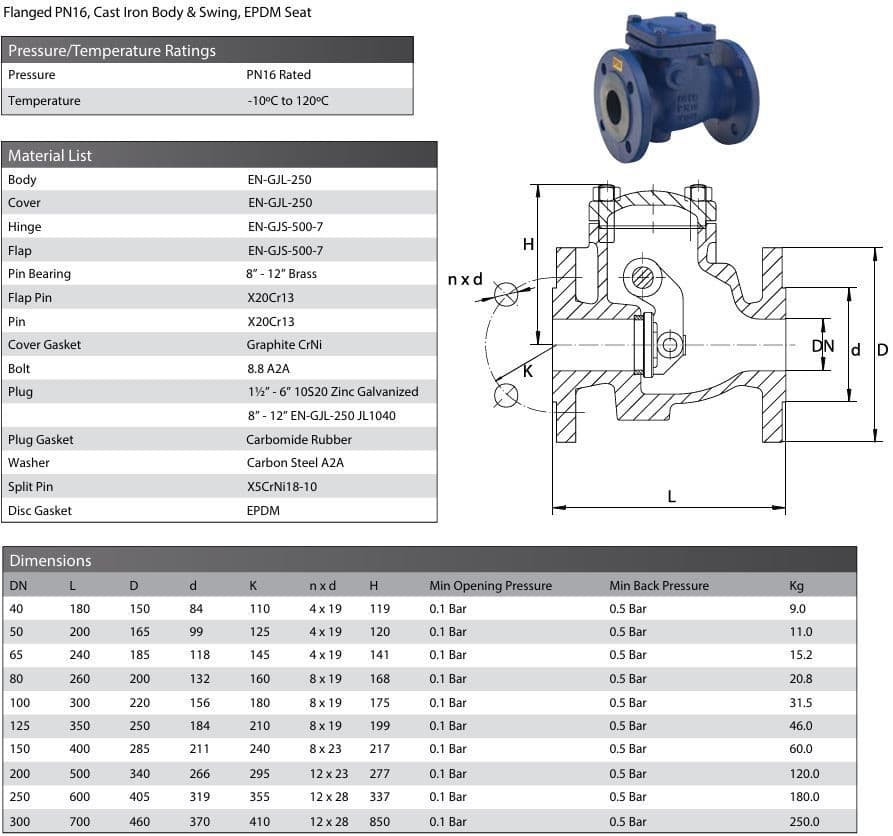

Technical Specifications:

• Valve Type: Swing Check / Non-Return Valve

• Body Material: Cast Iron (EN-GJL-250 or equivalent)

• Sealing Seat: EPDM resilient, flexible, and chemical-resistant

• Flange Rating: PN16 (16 bar pressure)

• Temperature Range: -10°C to +120°C (depending on fluid and system)

• Sizes Available: DN50 to DN300+ (contact us for larger diameters)

Reliable Backflow Prevention for Pressurised Fluid Systems

Whether you're protecting pumps, maintaining flow direction in a process line, or installing a non-return solution for a water supply system, this PN16-rated Cast Iron Swing Check Valve is the industry-standard choice. With its resilient EPDM seat and robust body, it ensures dependable, maintenance-friendly operation in any environment.

Need expert guidance on specifying the right check valve?
Speak to the team at Henry Pumps were here to help.
