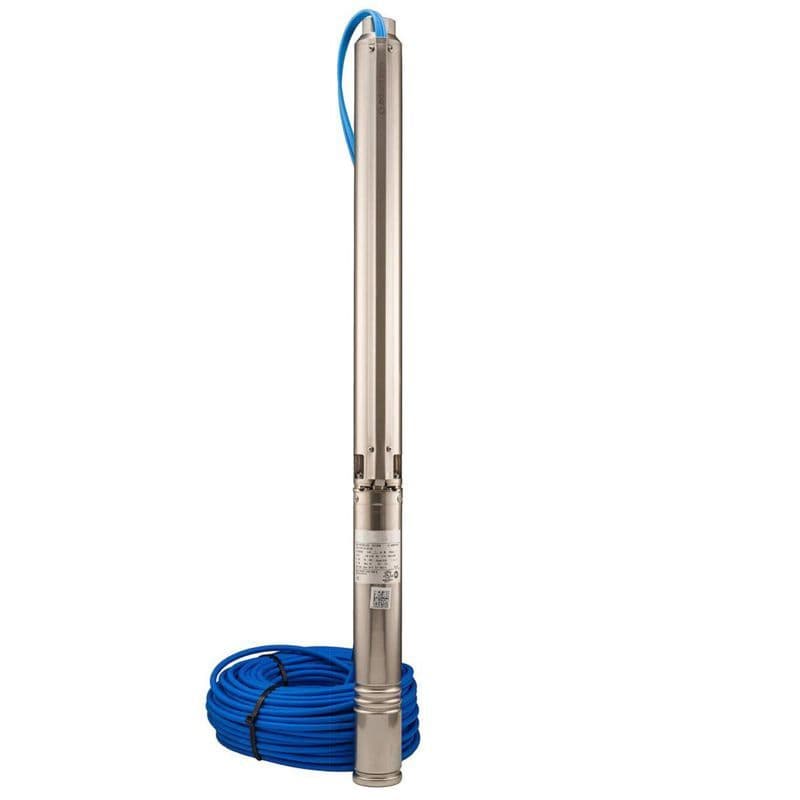

Debe DB3 2 Borehole Pump Range (3 Submersible Deep Well Pumps)
Models: DB3 2/16 | DB3 2/22 | DB3 2/30
Compact. Powerful. Built for Performance in 3 Boreholes.
The Debe DB3 2 range of 3 borehole pumps represents the very best of Swedish engineeringdesigned to deliver reliable, high-efficiency water supply in domestic, agricultural, and light commercial applications.
Built with a slim 76mm diameter, these pumps are ideal for 3 boreholes or restricted 4 wells, making them one of the most versatile and cost-effective borehole pump solutions available today.
Whether you're supplying water to a house, irrigation system, or off-grid installation, the DB3 2 range delivers consistent flow, strong pressure, and long-term durability.
Why Choose the Debe DB3 2 Range?
Designed for Narrow Boreholes
Ultra-slim 76mm diameter fits 3 wells and tight installations with ease.
Plug & Play Installation Available (230V)
The standard model includes a short tail for power cable, but use the drop down menu for quick, hassle-free setup with pre-fitted cable (60mtr, 80mtr, 100mtr options) and simple connection.
High Efficiency Performance
Engineered for optimal output with low energy consumption - ideal for long-term use.
Dry Run & Overheating Protection
Built-in safety system automatically shuts down the pump if water levels drop or overheating occurs.
Durable Stainless Steel Construction
Corrosion-resistant housing with robust polycarbonate impellers for extended lifespan.
Drinking Water Approved Cable
Safe for potable water applications.

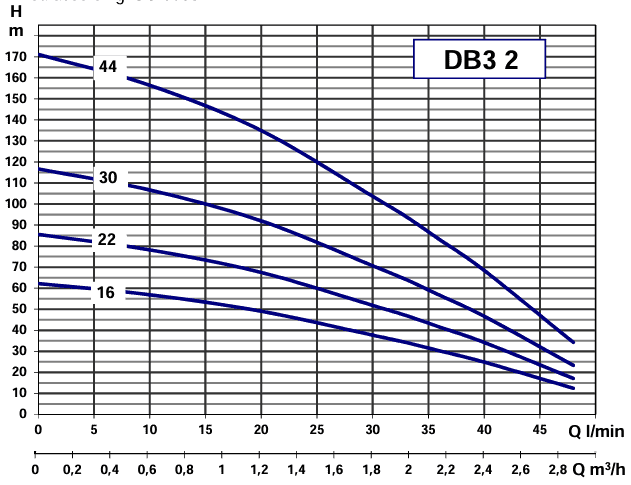

Performance Overview
The DB3 2 series is designed for medium flow, high head applications, delivering up to:
-
Flow rates: up to 45 litres/min
-
Maximum head: up to 117 metres
-
Power range: 0.37kW 0.75kW
This makes the range ideal for:
-
Domestic water supply
-
Farms & irrigation
-
Pressure boosting systems
-
Deep boreholes with high lift requirements
Available Models
Debe DB3 2/16 Borehole Pump
-
Motor: 0.37kW
-
Max Flow: 45 L/min
-
Max Head: 62m
Ideal for shallower boreholes and lower demand systems such as small homes or garden irrigation.
Debe DB3 2/22 Borehole Pump
-
Motor: 0.55kW
-
Max Flow: 45 L/min
-
Max Head: 86m
A balanced all-rounder, perfect for most domestic borehole installations.
Debe DB3 2/30 Borehole Pump
-
Motor: 0.75kW
-
Max Flow: 45 L/min
-
Max Head: 117m
Best suited for deep boreholes or high-pressure requirements.

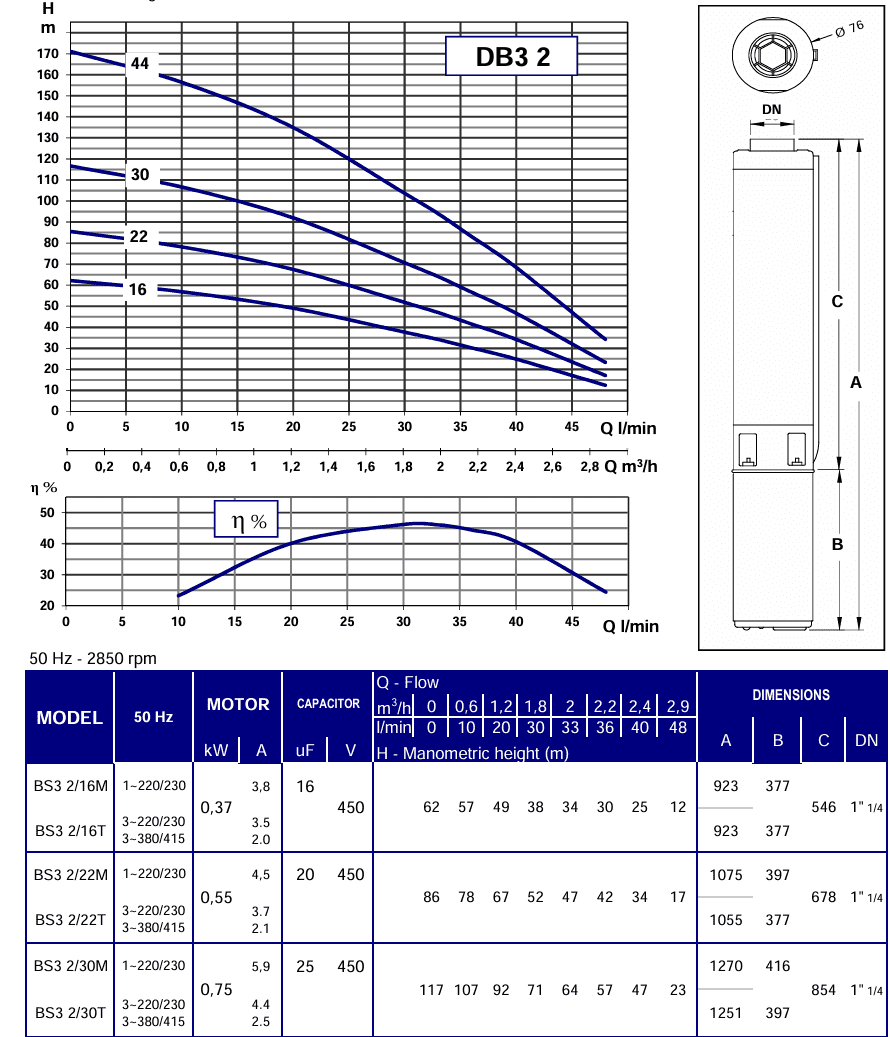

Technical Specifications (DB3 2 Range)
-
Pump Type: Submersible borehole pump
-
Borehole Size: 3 (76mm min)
-
Voltage: 230V (single phase)
-
Speed: 2850 rpm
-
Protection Class: IP68
-
Outlet: 1¼ BSP
-
Non-return valve: Integrated
-
Materials: Stainless steel body, polycarbonate impellers
Applications
The Debe DB3 2 pumps are suitable for:
-
Domestic water supply (houses, cottages, rural properties)
-
Agricultural & irrigation systems
-
Water transfer & storage systems
-
Construction and site water supply
-
Eco / off-grid water systems
Installation & Compatibility
The DB3 2 range is designed for quick and simple installation, making it ideal for both professionals and competent DIY installers.
Compatible with:
-
Pressure vessels & controllers
-
Float switches
-
Borehole control panels
-
Variable speed drives (for constant pressure systems)
Expert Advice from Henry Pumps
Not sure which model is right for your borehole?
Our team will size the correct pump based on:
-
Borehole depth
-
Required flow rate
-
Pressure requirements
-
Pipework layout
Get in touch today for free, expert advice.
Why Buy from Henry Pumps?
UK borehole pump specialists
Expert technical support
Fast nationwide delivery
Carefully selected, high-quality brands
Full system design support available
Summary
The Debe DB3 2 borehole pump range delivers a powerful combination of:
-
Compact design
-
High efficiency
-
Reliable protection systems
-
Proven Swedish engineering
If you're looking for a cost-effective, high-performance 3 borehole pump, the DB3 2 series is one of the best options on the market.
Call to Action
Order online today or speak to our technical team for sizing advice - 0333 0503748 or email us on sales@henrypumps.co.uk
Bulk pricing & full borehole kits available on request.
Customer reviews
-
Product Code:8716210
Suitable for
- Clean-water extraction from narrow boreholes
- Private water supplies for rural homes
- Garden and small-scale agricultural irrigation
- Clean-water tank filling and transfer
Not suitable for
- Sewage, sludge and fibrous wastewater
- Heavy sand, grit and abrasive slurry
- Seawater, fuels and corrosive liquids
- Boreholes below 82mm internal diameter
Frequently Asked Questions
The pump has a 76mm body diameter, but Debe specifies a minimum borehole internal diameter of 82mm.
The “3-inch” description identifies the pump’s nominal size; it does not mean a borehole with exactly 76mm clearance is suitable.
Check the actual clear internal diameter, including any restrictions, and allow for the cable and installation fittings. The pump must not be forced into an undersized casing.
The pump needs a suitable external control arrangement for automatic tap-demand operation.
A domestic water-supply system may use a pressure switch and pressure vessel, or another compatible controller. Tank-filling applications may instead require level controls.
Do not assume that opening or closing a tap directly controls the standard pump. Have the controls specified for the intended application rather than leaving the pump running against a closed outlet.
The 230V single-phase DB3 models have built-in overheating protection, which Debe describes as protecting the motor against overheating associated with dry running.
This is a protective feature, not permission to operate without water. It should not be confused with a separate sensor monitoring the borehole’s water level.
Maintain an adequate water supply and have any additional low-water protection assessed for your installation, particularly where the borehole has a limited yield.
The DB3 is intended for clean, cold water, not sewage or heavily contaminated drainage water.
Debe’s installation guidance specifies a maximum sand concentration of 25g/m³. This limited allowance does not make the pump suitable for persistent grit, heavy sediment or abrasive slurry.
Have the water conditions checked where a borehole produces visible sand. Keep the pump clear of accumulated sediment.
.Yes. The DB3 incorporates a non-return valve in its discharge connection.
This helps prevent water flowing backwards through the pump after it stops. The installer should assess the complete discharge system and specify any additional valves or protective equipment required.
