Information

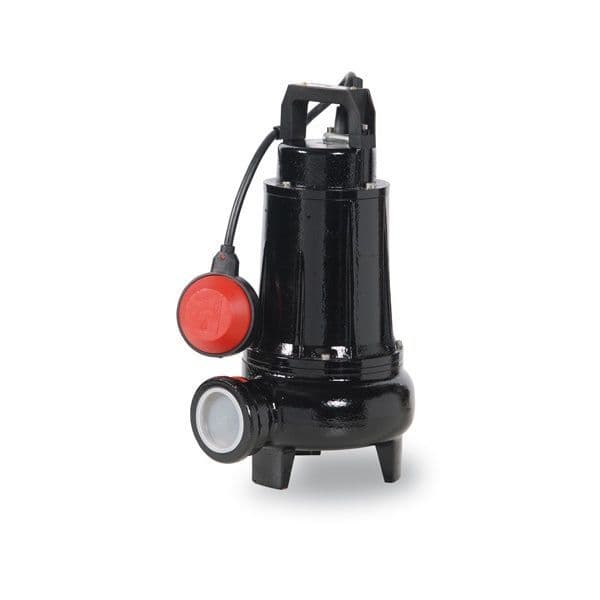

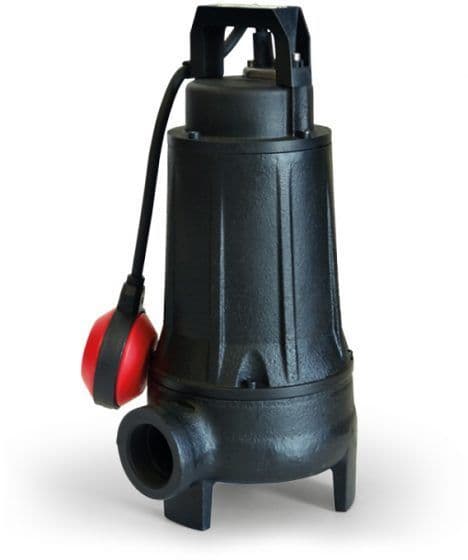

Manufactured by Dreno, the Compatta Vortex are a range of submersible sewage pumps that are particularly well suited to the domestic and commercial wastewater market.
Benefiting from a set-back vortex style impeller, the Dreno Compatta Vortex range can handle solids of up to 50mm in diameter. The additional advantage of the vortex design is that solids contact with the pump impeller is minimised, thus in turn reducing the chance of blockages and unplanned maintenance.
Engineered from high-quality GG20 cast-iron pump body and impeller, you can rest assured that the Dreno Compatta Vortex is built to last. Featuring a mechanical seal on the impeller side, longevity and reliability is ensured.
Maximum liquid temperature: 40 degrees C.
Maximum immersion depth: 20 metre.
Power cable: 10 metre heavy duty power cable included.
Outlet: 2 inch threaded port. Can be adapted for guide rail installation.
Available in both 230v single phase and 400v three phase with our without float switch for automatic operation.

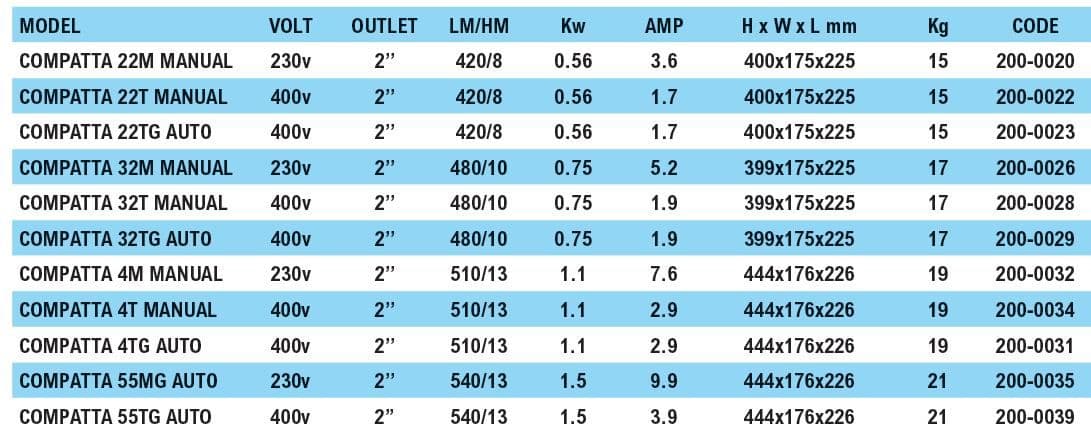

The full technical data sheet for the Dreno Compatta Vortex range can be viewed by clicking here.
Easy B guide rail kits are also available to purchase and include a guide rail coupling foot, claw and top bracket.
Should you prefer to checkout using PayPal, Stripe or Apple Pay then simply add the product to your cart as normal, select "checkout securely" and from the order summary page select the "Alternative Payment Methods" button at the top right. This product is also available to purchase with 0% interest free credit over 4 months by using PayPal credit through the alternative checkout menu. We do also accept telephone orders so if you would prefer to make payment over the telephone by card then please do not hesitate to call us and one of our friendly engineers will be happy to assist.
Benefiting from a set-back vortex style impeller, the Dreno Compatta Vortex range can handle solids of up to 50mm in diameter. The additional advantage of the vortex design is that solids contact with the pump impeller is minimised, thus in turn reducing the chance of blockages and unplanned maintenance.
Engineered from high-quality GG20 cast-iron pump body and impeller, you can rest assured that the Dreno Compatta Vortex is built to last. Featuring a mechanical seal on the impeller side, longevity and reliability is ensured.
Maximum liquid temperature: 40 degrees C.
Maximum immersion depth: 20 metre.
Power cable: 10 metre heavy duty power cable included.
Outlet: 2 inch threaded port. Can be adapted for guide rail installation.
Available in both 230v single phase and 400v three phase with our without float switch for automatic operation.
The full technical data sheet for the Dreno Compatta Vortex range can be viewed by clicking here.
Easy B guide rail kits are also available to purchase and include a guide rail coupling foot, claw and top bracket.
Should you prefer to checkout using PayPal, Stripe or Apple Pay then simply add the product to your cart as normal, select "checkout securely" and from the order summary page select the "Alternative Payment Methods" button at the top right. This product is also available to purchase with 0% interest free credit over 4 months by using PayPal credit through the alternative checkout menu. We do also accept telephone orders so if you would prefer to make payment over the telephone by card then please do not hesitate to call us and one of our friendly engineers will be happy to assist.
Specifications
-
Condition:New
-
Product Code:200-0020
-
Weight:15kg
