Information
The Duplex control panel is a twin pump control panel suitable for indoor use and control of sump pumps, booster sets as well as well and borehole pumps and features auto-changeover as standard.
The DUPLEX-UP is designed for controlling two motors or electric pumps used in pressurisation systems or in applications for emptying wells or water tanks with multi-contact float switches or pressure switches.
Range: 0.37kW-7.5kW. 2-16amps.
TECHNICAL FEATURES:
Electronic control panel;
Input voltage 1~50/60 Hz 230V ±10% (single-phase model DUPLEX-UP-M);
Input voltage 3~50/60 Hz 400V ±10% (three-phase model DUPLEX-UP-T);
Very low voltage input for float switch of stop;
Very low voltage input for n.2 float switches of start;
Very low voltage input for max level alarm float switch;
Very low voltage input for n.2 motors Klaxon;
Pumps exchanger circuit with 4 delay between the starts of the 2 pumps;
Possibility to exclude a damaged pump;
Internal selector for exclusion of pumps exchanger;
Push-buttons for AUTO-OFF-MANUAL motor operation (MANUAL temporary);
Green led for power on;
N.2 green led for motors operating;
N.2 green led for auto operation;
Red led for water level alarm;
N.2 red led for overload motors protection alarm;
N.2 red led for alarm: motors Klaxon active;
N.2 push button for restoration from protection;
Adjustable electronic protection for motors overload;
Time for activation of protection: 5;
Auxiliary circuits protection fuse;
Motors protection fuses;
Alarm output with exchangeable contacts 5 A 250V (resistive load);
Main switch with door interlock;
Single-phase model adapted for the insertion of a capacitor (not included);
Box in ABS;
Output with cable holder;
Protection IP55;
Ambient temperature: -5/+40 °C;
Relative humidity 50% at 40 °C (not condensed).
Should you prefer to checkout using PayPal, Stripe or Apple Pay then simply add the product to your cart as normal, select "checkout securely" and from the order summary page select the "Alternative Payment Methods" button at the top right. This product is also available to purchase with 0% interest free credit over 4 months by using PayPal credit through the alternative checkout menu. We do also accept telephone orders so if you would prefer to make payment over the telephone by card then please do not hesitate to call us and one of our friendly engineers will be happy to assist.
The DUPLEX-UP is designed for controlling two motors or electric pumps used in pressurisation systems or in applications for emptying wells or water tanks with multi-contact float switches or pressure switches.
Range: 0.37kW-7.5kW. 2-16amps.
TECHNICAL FEATURES:
Electronic control panel;
Input voltage 1~50/60 Hz 230V ±10% (single-phase model DUPLEX-UP-M);
Input voltage 3~50/60 Hz 400V ±10% (three-phase model DUPLEX-UP-T);
Very low voltage input for float switch of stop;
Very low voltage input for n.2 float switches of start;
Very low voltage input for max level alarm float switch;
Very low voltage input for n.2 motors Klaxon;
Pumps exchanger circuit with 4 delay between the starts of the 2 pumps;
Possibility to exclude a damaged pump;
Internal selector for exclusion of pumps exchanger;
Push-buttons for AUTO-OFF-MANUAL motor operation (MANUAL temporary);
Green led for power on;
N.2 green led for motors operating;
N.2 green led for auto operation;
Red led for water level alarm;
N.2 red led for overload motors protection alarm;
N.2 red led for alarm: motors Klaxon active;
N.2 push button for restoration from protection;
Adjustable electronic protection for motors overload;
Time for activation of protection: 5;
Auxiliary circuits protection fuse;
Motors protection fuses;
Alarm output with exchangeable contacts 5 A 250V (resistive load);
Main switch with door interlock;
Single-phase model adapted for the insertion of a capacitor (not included);
Box in ABS;
Output with cable holder;
Protection IP55;
Ambient temperature: -5/+40 °C;
Relative humidity 50% at 40 °C (not condensed).
Should you prefer to checkout using PayPal, Stripe or Apple Pay then simply add the product to your cart as normal, select "checkout securely" and from the order summary page select the "Alternative Payment Methods" button at the top right. This product is also available to purchase with 0% interest free credit over 4 months by using PayPal credit through the alternative checkout menu. We do also accept telephone orders so if you would prefer to make payment over the telephone by card then please do not hesitate to call us and one of our friendly engineers will be happy to assist.

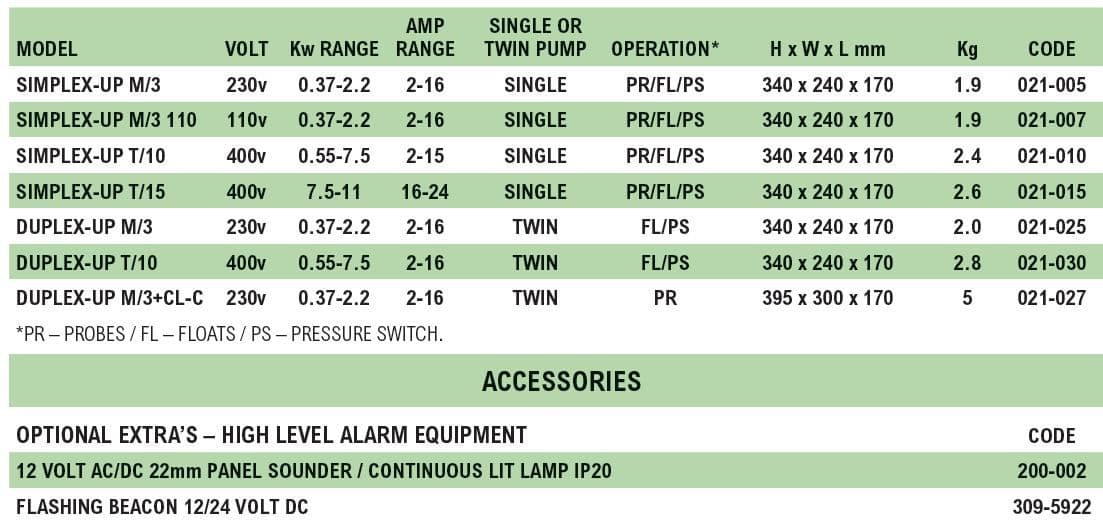

Specifications
-
Condition:New
-
Product Code:021-025
-
Weight:2kg
