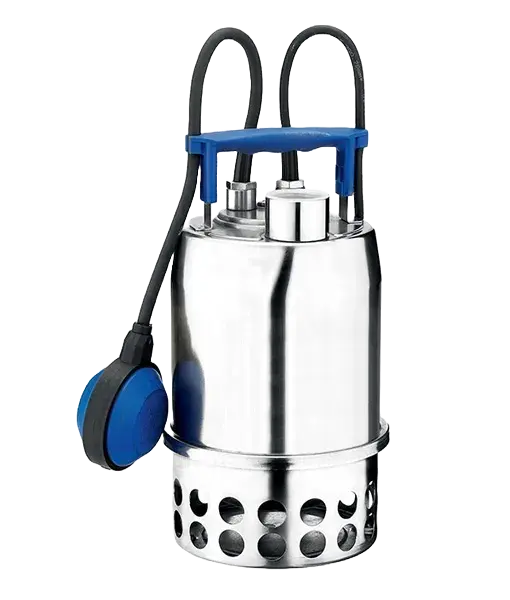

Ebara Best One VOX MA – Stainless Steel Automatic Vortex Impeller Pump with Float
The Ebara Best One VOX MA is a premium automatic stainless steel submersible drainage pump designed for demanding clean-and-lightly-contaminated water applications. The “VOX” indicates it uses a vortex impeller for improved solids handling, and the “MA” means it includes a standard float switch for automatic start/stop operation. It’s ideal for environments where both performance and reliability are required—such as homes, basements, garages, and light commercial sites.
🔧 Key Features
-
Vortex Impeller (“VOX”) – can pass larger solids (≈ 20 mm), reducing risk of clogging.
-
Automatic Float Switch (“MA”) – activates the pump when water reaches the preset level, stopping automatically when demand ceases. Great for unattended drainage.
-
Stainless Steel Construction – AISI 304 pump casing, impeller, motor cover etc.; shaft in AISI 303. Robust materials resist corrosion and wear.
-
Mechanical Seal & IP68 Protection – Uses Ceramic/Carbon/NBR mechanical seal with an oil chamber plus lip seal; rated for submersion to 5 m.
-
Built-in Overload Protection – Internal thermal protection to safeguard the motor.
📊 Technical Specifications
| Specification | Value |
|---|---|
| Power Supply | 230 V ±10%, Single Phase (50 Hz) |
| Motor Power | 0.25 kW (~0.33 HP) |
| Maximum Flow | Up to 170 L/min (≈ 10.2 m³/h) |
| Maximum Head | ≈ 6.50 metres (VOX version) |
| Solids Passage | Up to 20 mm for vortex (VOX) impeller type |
| Max Liquid Temperature | 50°C |
| Maximum Immersion Depth | 5 metres |
| Discharge Connection | G 1¼″ threaded outlet |
| Protection Rating | IP68, Insulation Class F |
| Cable Length | 5 m standard (indoor); 10 m option for outdoor use |
| Weight / Dimensions | 4.7kg for VOX MA version; compact form factor suitable for small sumps (≈ Ø260-330 mm height) |
✅ Ideal Applications
-
Basements, garages, cellars, and areas subject to flooding
-
Tanks, wells, reservoirs needing automatic water removal
-
Garden fountains or decorative features
-
Situations where larger debris might be present (VOX vortex helps here)
-
Locations where automatic float control adds convenience or safety
⚙️ Benefits & Considerations
Pros:
-
Excellent solids tolerance due to vortex impeller
-
Automatic float switch simplifies use for non-technical users
-
Stainless steel build ensures durability and corrosion resistance
-
Good performance across flow/head range for domestic/light commercial use
🛠️ Need sizing help or maintenance guidance?
Our Henry Pumps specialists are here to help—from installation assistance to spare parts and servicing.
📞 0333 050 3748 | ✉️ sales@henrypumps.co.uk
-
Brand:Ebara
-
Condition:New
-
Product Code:1741101700
-
Weight:4.8kg
