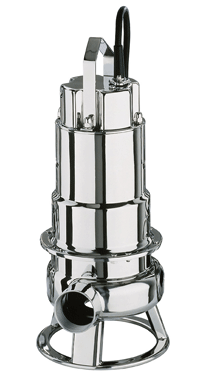

Ebara DW M Range – Manual Stainless Steel Submersible Drainage Pumps (No Float Switch)
The Ebara DW M Range features a collection of high-quality stainless steel submersible drainage pumps, designed for clean and slightly dirty water in domestic, agricultural, and light commercial environments.
Built to the highest standards using AISI 304 stainless steel throughout, each model in the DW M range offers excellent reliability, long service life, and quiet, efficient operation. The manual versions (DW M 75 / 100 / 150) come without a float switch, giving you full control via an external panel or manual start/stop — ideal where space is tight or automated control isn’t required.
✅ Key Features & Construction
-
Full Stainless Steel Construction – Casing, impeller, and motor housing all in AISI 304 stainless steel for corrosion resistance and durability.
-
Semi-Open Impeller Design – Capable of handling soft or fine solids up to 10 mm in diameter.
-
Double Mechanical Seal – Lubricated in oil chamber (SiC/Carbon/NBR) for long seal life and motor protection.
-
Built-in Thermal Overload Protection – Safeguards motor from overheating.
-
IP68 Protection – Suitable for continuous submersion up to 10 m.
-
Manual Operation (No Float) – Start/stop control via external panel or manual switch.
-
Lightweight, Compact & Portable – Easy to transport, install, and maintain.
📊 Technical Specifications
| Model | Power (kW) | Flow (m³/h) | Head (m) | Solids (mm) | Outlet | Weight (kg) |
|---|---|---|---|---|---|---|
| DW M 75 | 0.75 | 16 | 10 | 10 | 2″ BSP | 15.8 |
| DW M 100 | 1.0 | 18 | 11 | 10 | 2″ BSP | 17.8 |
| DW M 150 | 1.5 | 21.6 | 14 | 10 | 2″ BSP | 19.2 |
All models: 230 V single phase / 50 Hz · Max liquid temp 50 °C · Max immersion 10 m · 10 m cable length · IP68 protection.
🛠 Ideal Applications
-
Basements, garages, and cellars prone to flooding
-
Water transfer from tanks, reservoirs, and sumps
-
Rainwater and irrigation systems
-
Construction and utility site drainage
-
General clean- or grey-water applications
⚙️ Benefits
-
Multiple power options (0.75 – 1.5 kW) to suit any drainage duty
-
Proven Ebara reliability with stainless steel build quality
-
Compact and versatile – easily installed or relocated as needed
-
Low maintenance and quiet operation
-
Manual control flexibility – ideal for integration with control panels or custom systems
🛠️ Need sizing help or maintenance guidance?
Our Henry Pumps specialists are here to help—from installation assistance to spare parts and servicing.
📞 0333 050 3748 | ✉️ sales@henrypumps.co.uk
-
Condition:New
-
Product Code:1589031621A
-
Weight:15.8kg
