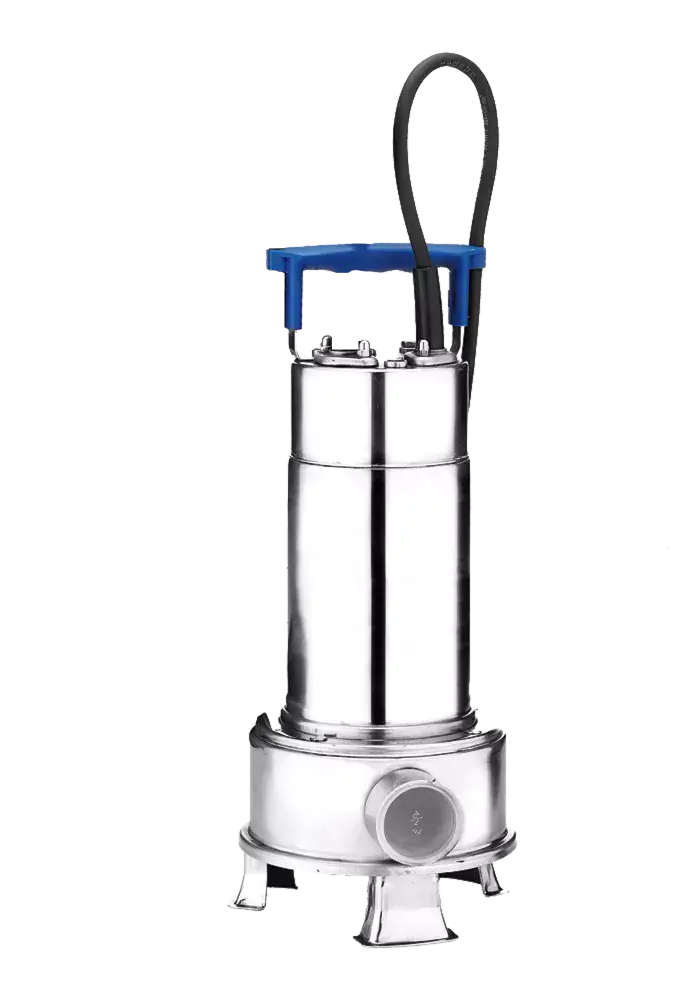

Ebara RIGHT 75 M – Manual Stainless Steel Submersible Sewage / Wastewater Pump (No Float Switch)
The Ebara RIGHT 75 M is a robust, stainless steel submersible wastewater pump designed for dirty water and sewage applications in domestic, light commercial, or industrial settings. The “M” denotes the manual/non-automatic version - no float switch - so control is managed externally. This model is ideal for duty points requiring high solids handling, reliability, and durability.
✅ Key Features & Construction
-
Stainless Steel Build: Pump casing, impeller, motor frame, and motor cover in AISI 304; shaft in AISI 303.
-
Semi-Vortex Impeller: Allows for passage of solids up to 35 mm diameter—excellent for sewage and effluent containing grit or debris.
-
Double Mechanical Seals: Oil-lubricated chamber with SiC/SiC or Carbon/Ceramic/NBR faces to protect motor from contamination.
-
IP68 Protection & Thermal Overload: Suitable for full immersion (up to 10 m) and equipped with built-in motor protection.
-
No Float Switch: This manual version (M) is intended for installations with external control or where float switches are impractical.
-
High Capacity Range: Up to ~18 m³/h flow capability (depending on model curve) and head up to ~9.5 m.
📊 Typical Specifications
| Specification | Value / Range |
|---|---|
| Power | 0.55 kW single phase (for RIGHT 75 M) |
| Flow Range | 40 to 240 L/min (2.4 to 14.4 m³/h) |
| Max Head | Up to ~9 m |
| Maximum Immersion Depth | 10 m |
| Max Liquid Temperature | 50 °C |
| Solids Handling | Up to 35 mm spherical solids |
| Discharge Connection | G 1½″ / 1½″ threaded outlet |
| Cable Length | Typically 10 m (non-plugged) in single phase versions |
| Weight & Dimensions | 10.1kg |
🛠 Ideal Applications & Benefits
Applications:
-
Sewage pits, cesspools, and effluent drainage
-
Dirty water removal in industrial or process settings
-
Site dewatering with solids content
-
Domestic wastewater systems lacking gravity flow
Benefits:
-
Excellent solids tolerance due to semi-vortex design
-
Robust, corrosion-resistant construction for long life
-
Manual version flexibility, useful where you prefer external control or elimination of float mechanisms
-
High performance over wide range makes it suitable for varying head and flow demands
🛠️ Need sizing help or maintenance guidance?
Our Henry Pumps specialists are here to help—from installation assistance to spare parts and servicing.
📞 0333 050 3748 | ✉️ sales@henrypumps.co.uk
-
