ESPA Drainex 400 Sewage Vortex Pump 3phs 400v

The Drainex 400 models, manufactured by ESPA Pumps are a range of submersible sewage pumps including a set-back vortex impeller designed for the drainage of both clear and dirty waste water with a solids handling capability of 40mm.  Engineered out of a mixture of both cast-iron stainless steel 304, the ESPA Drainex 400 range are a tough pump that is particularly suited to a range of drainage and commercial waste water jobs.

Applications:

Drainage of dirty and sewage waste water - maximum solids particle size of 40mm.
Septic tanks.
Wet wells, sewage systems etc.
Restaurants, bars, farms, livestock.

The motor shaft is constructed from stainless steel AISI 304 and the pump includes a double mechanical seal and o-rings in NBR.

Motor:

IP68 protection.
Class F insulation.
Oil filled motor.

Very efficient to operate with motors rated at only 2.6kW.

Please check with us prior to ordering as these models are not always in stock.

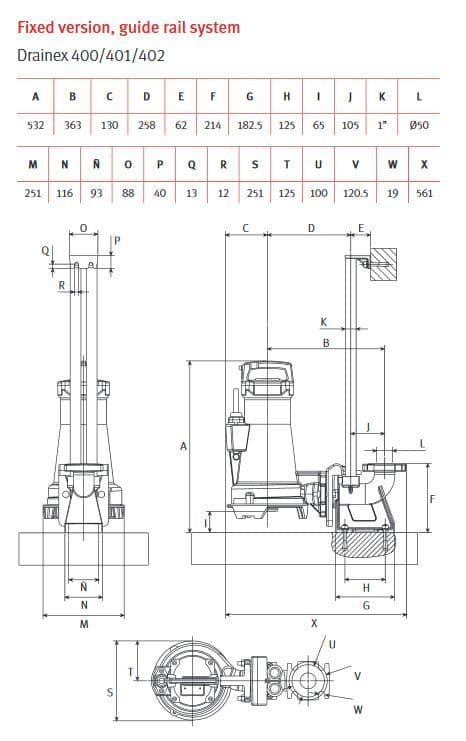

The Drainex 400 models are supplied with a 2 inch threaded outlet suitable for hose connection or guide rail installation.  All Drainex 400 pumps are available in 3phs, 400v only and suitable control panels and protection will be required.

Lead times do apply to this range so please contact us prior to placing any order.
