As we build in more remote and inaccessible areas, the need to pump waste water to treatment works becomes a key consideration at the planning stage, particularly with developments situated below the gravity sewer, or a considerable distance away.
As such, the traditional solution has been to build a packaged pumping station consisting of a chamber constructed with concrete rings and fitted out with pipes, valves and pumping equipment to move the waste water to the gravity main.
So, is there an alternative solution?
The simple answer is yes! Prefabricated Packaged Pumping Stations, fully kitted out with pump(s), valves and pipe work, can be delivered to site and simply placed in the ground.
Working closely with the market leaders in submersible pumps, Henry Pumps offer a comprehensive range of Packaged Pumping Stations (PPS) that are suitable for single dwellings through to major developments.
In developing their product range, the manufacturers of Flygt pumps have taken into consideration the different demands an application may exert on a product and created a unique and versatile range.
Packaged Pumping Stations manufactured by market leader Flygt use a simple, minimal design concept that is ideal for civil works where there is a need to reduce labour intensive tasks and a quick installation is required.
All of our stations are prefabricated and available in a range of designs and sizes, all supplied complete with the necessary materials and equipment to allow ease and speed of installation and commissioning.
Flygt Packaged Pumping Stations can be adapted to suit most individual requirements. Applications include domestic waste water for a single household, through to large housing developments, effluent and waste water from industrial units and commercial premises.
Indeed, in any situation where waste water needs to be pumped to a mains connection or where you need to upgrade existing arrangements, Henry Pumps has a solution. The below is one option we can provide. Please contact us or visit our packaged pump station link for further information.

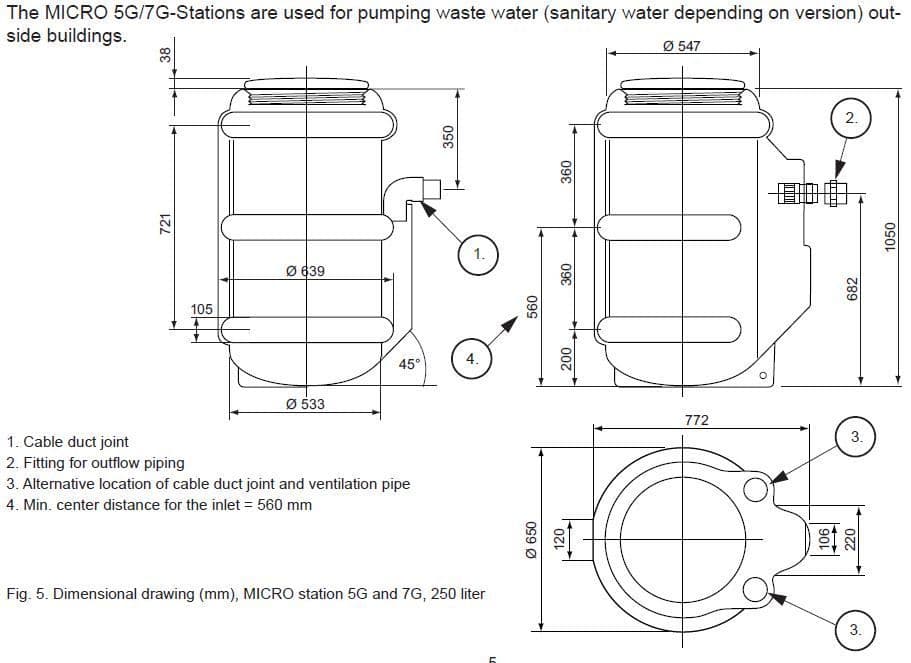

Flygt Micro 7G Packaged Pump Station:-
Micro 7G Packaged Pump Station
For below ground installation
2 Inch discharge
c/w Internal Pipe Discharge
Assembly (Supplied Loose)
Incl. Non Return Valve
Flygt CP3045.181 Cast iron submersible
Electric pump c/w 252 impeller
0.75kW 230/1/50
Discharge 50mm
10m 4G1.5mm+2x1.5mm
Thermal Switches.
E Compact 11b single phase single pump control panel
Manual control or automatic control by level switches
Pump running and tripped indicators
Integral high level indicator
Enclosure size 400h x 400w x 210d
Integral 14mF run capacitor only
Current range 4.0A to 6.3A.

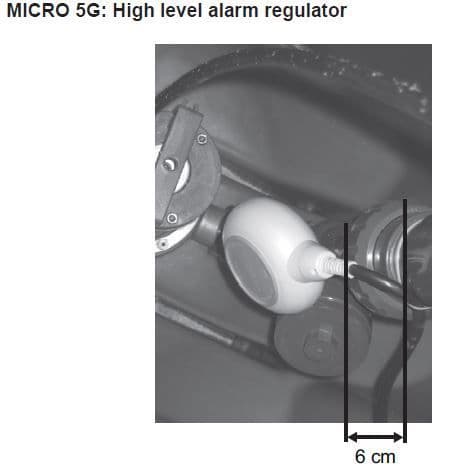

2 Level regulator NF5 with 10 cable.
All pumps are quoted rated as standard, non explosion-proof.
Unless otherwise advised, foul pump selections have been made on the basis of liquors having a
maximum dry solids content of 2%.
Pumps to be performance tested to ISO 9906/Grade 3B only. Our offer specifically excludes witness
testing.
The pump units offered for this application are fitted with an impeller suitable for solids handling as detailed in the specification, and are primarily designed for use on wastewater applications. It must,however, be appreciated that inadequate benching within the sump and/or the use of low level inlet sewers may promote the deposition of rags and solids during low inflow periods. In such pumping
systems, a poor choice of pumping control method can significantly increase the risk of blockages. In particular, high pumping rates at low depths of flow e.g., at the end of a pumping cycle, can cause rapid re-suspension of the sediment, effectively increasing the solids concentration.
It is imperative, therefore, that the pumping system be designed in such a way as to avoid the risk of such occurrences. Please contact us for further information if required.
We have not included for any equipment other than that detailed in the quotation. Unless specified, bolts
and fixings are excluded.
Henry Pumps - Pump Station Commissioning:-
Henry Pumps can commission your packaged pumping station for an additional cost. This service is available by fully qualified and trained Service Engineers.

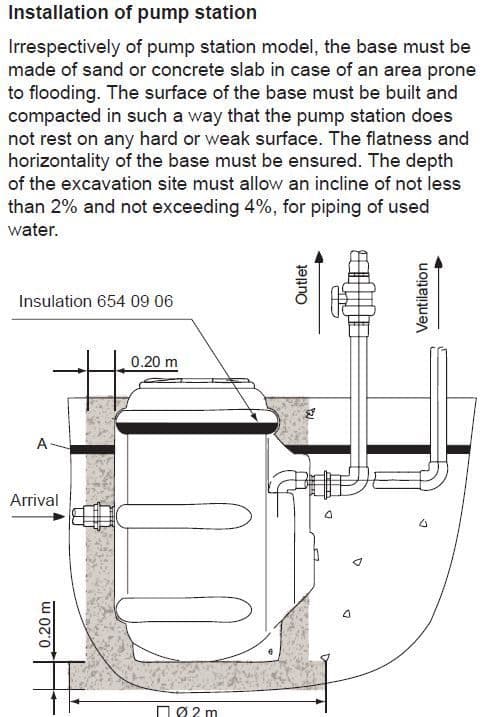

The Packaged Pumping Station (PPS) will be delivered with internal pipe work installed and the PPS will need to be buried by the Contractor/Customer in accordance with instructions provided - it is expected that the Contractor/Customer will complete the following before Henry Pumps attend:
· Make the Connection from the drainage system onto the Inlet of the PPS
· Make the Connection from the discharge pipe on the PPS onto a rising main
· Fit & provide mains power to the control panel (this may be wall mounted or kiosk
mounted)
· Provide Cable Ducts (or a cable route) between the PPS and the control panel
· Ensure the installed chamber is free from water for the arranged installation
Thereafter, and included in the optional commissioning price - Henry Pumps will:
· Attend Site, and prepare a Risk Assessment & Method Statement for the Commission event
· Draw Pump Cables through the Cable Duct & Terminate into the Control Panel
· Lower Pump(s) into the PPS
· Fit Level Controls into the PPS & draw cables through the cable ducts and terminate into the
Control Panel
· Undertake electrical tests to establish the Insulation & electrical balance of the pump motors
· Run the pumps dry to establish no load current
· Set up the Pump Protective Devices
· Issue and NICEIC Electrical Commission Certificate.
Please be advised that we do build the stations to order and also specific custom designed packaged pump stations to meet your exact requirements. A lead time will apply to this order. Please take time to complete the online form available here.
Should you prefer to checkout using PayPal, Stripe or Apple Pay then simply add the product to your cart as normal, select "checkout securely" and from the order summary page select the "Alternative Payment Methods" button at the top right. This product is also available to purchase with 0% interest free credit over 4 months by using PayPal credit through the alternative checkout menu.
As such, the traditional solution has been to build a packaged pumping station consisting of a chamber constructed with concrete rings and fitted out with pipes, valves and pumping equipment to move the waste water to the gravity main.
So, is there an alternative solution?
The simple answer is yes! Prefabricated Packaged Pumping Stations, fully kitted out with pump(s), valves and pipe work, can be delivered to site and simply placed in the ground.
Working closely with the market leaders in submersible pumps, Henry Pumps offer a comprehensive range of Packaged Pumping Stations (PPS) that are suitable for single dwellings through to major developments.
In developing their product range, the manufacturers of Flygt pumps have taken into consideration the different demands an application may exert on a product and created a unique and versatile range.
Packaged Pumping Stations manufactured by market leader Flygt use a simple, minimal design concept that is ideal for civil works where there is a need to reduce labour intensive tasks and a quick installation is required.
All of our stations are prefabricated and available in a range of designs and sizes, all supplied complete with the necessary materials and equipment to allow ease and speed of installation and commissioning.
Flygt Packaged Pumping Stations can be adapted to suit most individual requirements. Applications include domestic waste water for a single household, through to large housing developments, effluent and waste water from industrial units and commercial premises.
Indeed, in any situation where waste water needs to be pumped to a mains connection or where you need to upgrade existing arrangements, Henry Pumps has a solution. The below is one option we can provide. Please contact us or visit our packaged pump station link for further information.
Flygt Micro 7G Packaged Pump Station:-
Micro 7G Packaged Pump Station
For below ground installation
2 Inch discharge
c/w Internal Pipe Discharge
Assembly (Supplied Loose)
Incl. Non Return Valve
Flygt CP3045.181 Cast iron submersible
Electric pump c/w 252 impeller
0.75kW 230/1/50
Discharge 50mm
10m 4G1.5mm+2x1.5mm
Thermal Switches.
E Compact 11b single phase single pump control panel
Manual control or automatic control by level switches
Pump running and tripped indicators
Integral high level indicator
Enclosure size 400h x 400w x 210d
Integral 14mF run capacitor only
Current range 4.0A to 6.3A.
2 Level regulator NF5 with 10 cable.
All pumps are quoted rated as standard, non explosion-proof.
Unless otherwise advised, foul pump selections have been made on the basis of liquors having a
maximum dry solids content of 2%.
Pumps to be performance tested to ISO 9906/Grade 3B only. Our offer specifically excludes witness
testing.
The pump units offered for this application are fitted with an impeller suitable for solids handling as detailed in the specification, and are primarily designed for use on wastewater applications. It must,however, be appreciated that inadequate benching within the sump and/or the use of low level inlet sewers may promote the deposition of rags and solids during low inflow periods. In such pumping
systems, a poor choice of pumping control method can significantly increase the risk of blockages. In particular, high pumping rates at low depths of flow e.g., at the end of a pumping cycle, can cause rapid re-suspension of the sediment, effectively increasing the solids concentration.
It is imperative, therefore, that the pumping system be designed in such a way as to avoid the risk of such occurrences. Please contact us for further information if required.
We have not included for any equipment other than that detailed in the quotation. Unless specified, bolts
and fixings are excluded.
Henry Pumps - Pump Station Commissioning:-
Henry Pumps can commission your packaged pumping station for an additional cost. This service is available by fully qualified and trained Service Engineers.
The Packaged Pumping Station (PPS) will be delivered with internal pipe work installed and the PPS will need to be buried by the Contractor/Customer in accordance with instructions provided - it is expected that the Contractor/Customer will complete the following before Henry Pumps attend:
· Make the Connection from the drainage system onto the Inlet of the PPS
· Make the Connection from the discharge pipe on the PPS onto a rising main
· Fit & provide mains power to the control panel (this may be wall mounted or kiosk
mounted)
· Provide Cable Ducts (or a cable route) between the PPS and the control panel
· Ensure the installed chamber is free from water for the arranged installation
Thereafter, and included in the optional commissioning price - Henry Pumps will:
· Attend Site, and prepare a Risk Assessment & Method Statement for the Commission event
· Draw Pump Cables through the Cable Duct & Terminate into the Control Panel
· Lower Pump(s) into the PPS
· Fit Level Controls into the PPS & draw cables through the cable ducts and terminate into the
Control Panel
· Undertake electrical tests to establish the Insulation & electrical balance of the pump motors
· Run the pumps dry to establish no load current
· Set up the Pump Protective Devices
· Issue and NICEIC Electrical Commission Certificate.
Please be advised that we do build the stations to order and also specific custom designed packaged pump stations to meet your exact requirements. A lead time will apply to this order. Please take time to complete the online form available here.
Should you prefer to checkout using PayPal, Stripe or Apple Pay then simply add the product to your cart as normal, select "checkout securely" and from the order summary page select the "Alternative Payment Methods" button at the top right. This product is also available to purchase with 0% interest free credit over 4 months by using PayPal credit through the alternative checkout menu.
Specifications
-
Brand:Flygt
-
Condition:New
-
Product Code:MICRO7GC3045
