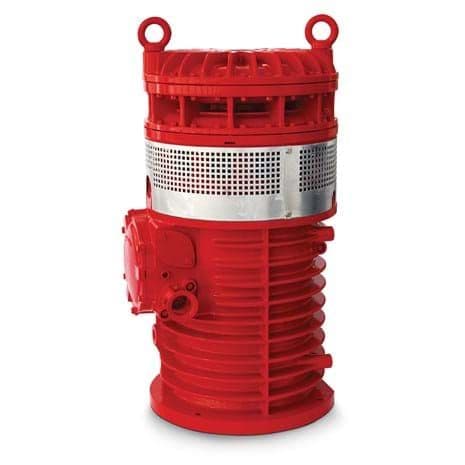

Grindex Mega 4 & 6 Inch Submersible Drainage Pump

The Grindex Mega pump is a highly durable and efficient submersible pump designed to meet the demanding requirements of industrial and construction applications. Known for its reliability and robust engineering, the Mega pump excels in challenging environments where high-capacity water drainage and extreme pumping heads are required.

Grindex drainage pumps are our premium choice and designed for professional use in demanding applications including mines, quarries, construction sites, tunnelling and other tough industries.

Key Features and Capabilities

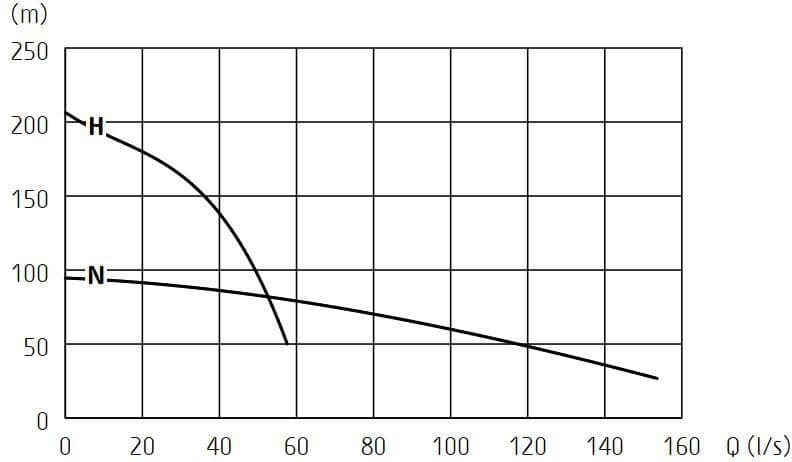

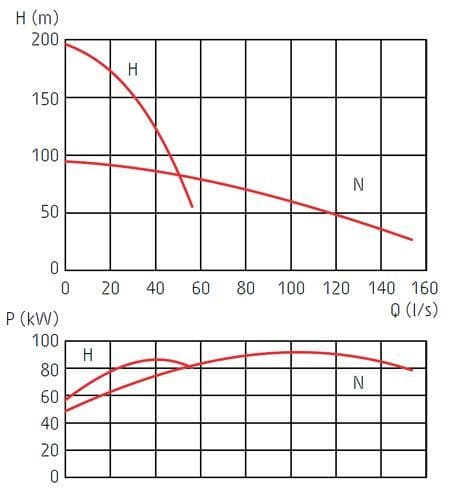

1. Variants:

   • Mega N: Designed for normal head applications, offering flow capacities up to 550 m³/h.
   • Mega H: Optimized for high head applications, with a maximum capacity of 200 m³/h and head heights up to 205 meters.

2. Construction and Durability:

   • Made with a cast iron body and stainless steel components, the pump is well-suited for harsh conditions.
   • Equipped with a Hard-Iron impeller, it effectively handles abrasive fluids, ensuring long operational life.

3. Performance and Efficiency:

   • Can operate continuously in extreme conditions, such as open-pit and underground mines, quarries, and tunnelling projects.
   • Handles pH levels ranging from 6 to 13 as standard and offers additional protection with zinc anodes (sold separately), making it suitable for saltwater and corrosive environments.

4. User-Friendly Features:

   • Easy to install and maintain, with electronic protection systems that allow dry running for extended periods.
   • Available in multiple voltage options to cater to diverse power requirements.

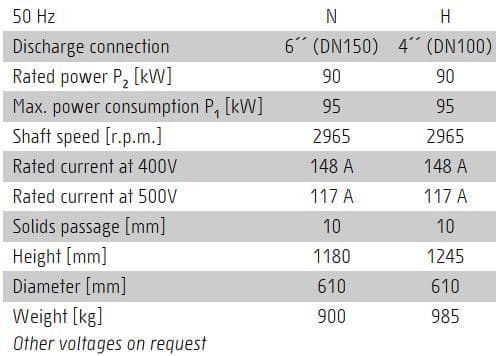

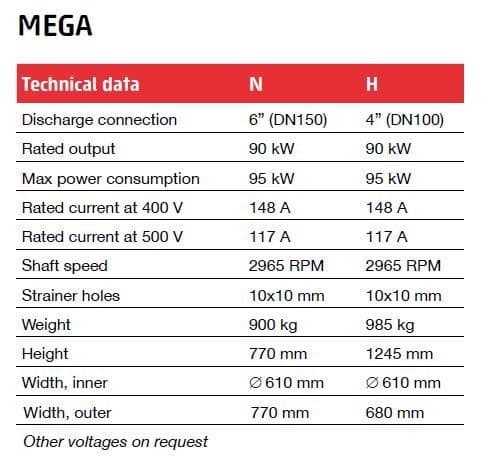

5. Specifications:

   • Maximum liquid temperature: 40°C.
   • Solids passage capability: Up to 10 mm.
   • IP68-rated for submersion up to 75 meters.

Applications

The Grindex Mega pump is a top choice for:

• Deep excavations requiring high-head pumping.
• Heavy-duty drainage tasks in industries like construction, mining, and tunnelling.
• Managing abrasive and challenging fluid environments effectively.

With its advanced design and reliable performance, the Grindex Mega pump is a versatile solution for operators seeking efficiency and longevity in tough environments.

Grindex Pumps: The Perfect Blend of Performance and Reliability

Grindex pumps are engineered to deliver exceptional return on investment through their renowned Swedish design and superior build quality. Known for their unmatched focus on durability, performance, and efficiency, Grindex products ensure long-term reliability, even under the toughest conditions. Every detail, down to the smallest screw, reflects Grindex's commitment to quality.

SMART Technology: Advanced Pump Intelligence

At the heart of Grindex pumps lies the innovative SMART electronic surveillance system, which has been integral to their design since 1990. This system provides comprehensive motor protection, minimizing risks from electrical issues and reducing downtime. Key features include:

• Three-tier motor protection: Guards against electrical anomalies.
• Plug-and-pump functionality: Eliminates the need for external start boxes or control panels.
• Phase-failure guard: Prevents damage during phase loss.
• Temperature protection: Automatically stops the pump when it overheats.
• Automatic restart: Resumes operation after cooling down.
• Phase-sequence control: Ensures proper impeller rotation for optimal performance.

Low Total Cost of Ownership

Grindex pumps minimize hidden costs, offering a low life-cycle cost through optimized maintenance and long-lasting durability. While the upfront price is evident, other factors—such as installation, operation, and service expenses—are greatly reduced. These features contribute to significant cost savings:

• Dry-running capability: An air valve cools the pump to prevent overheating.
• Simplified maintenance: Fewer components and ergonomic design reduce service complexity.
• Optimized hydraulics: Advanced design minimizes wear, extending service intervals.
• Built-in start equipment: Eliminates the need for external systems.

Proven Performance in Harsh Conditions

For over 50 years, Grindex drainage pumps have set the standard for reliable, continuous operation in challenging environments. Their robust design and intelligent systems outperform competitors, providing users with peace of mind and exceptional efficiency in demanding applications.

Grindex pumps aren’t just machines—they’re a long-term investment in quality and reliability, ensuring optimal performance across industries.
