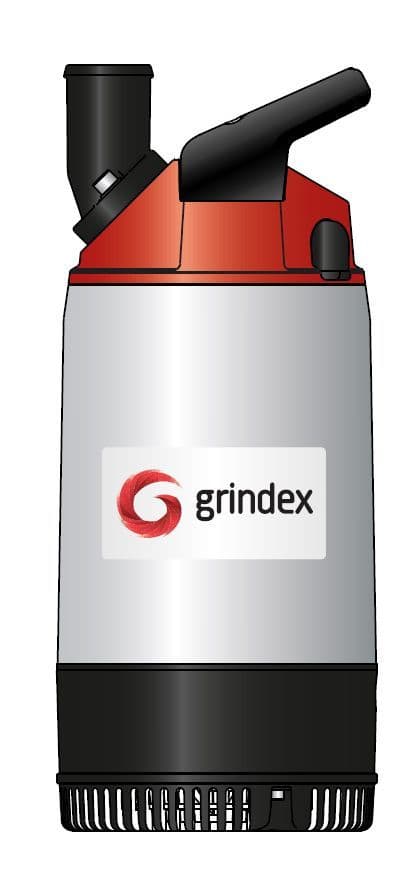

Grindex Mini 2 Inch Submersible Drainage Pump

The Grindex Mini pump is a compact, submersible drainage pump designed for efficiency, reliability, and ease of use. Ideal for handling contaminated water and abrasive fluids, it is a trusted solution in construction, mining, and industrial applications where portability and durability are critical.

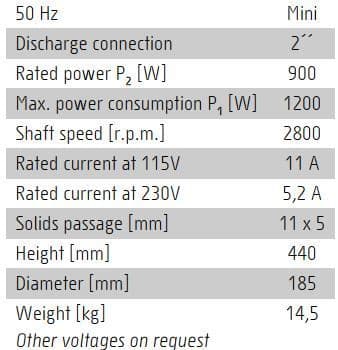

Key Specifications

• Pump Type: Submersible drainage pump with an impeller design.
• Power Supply: Single-phase, 230V, with a maximum power consumption of 1.2 kW.

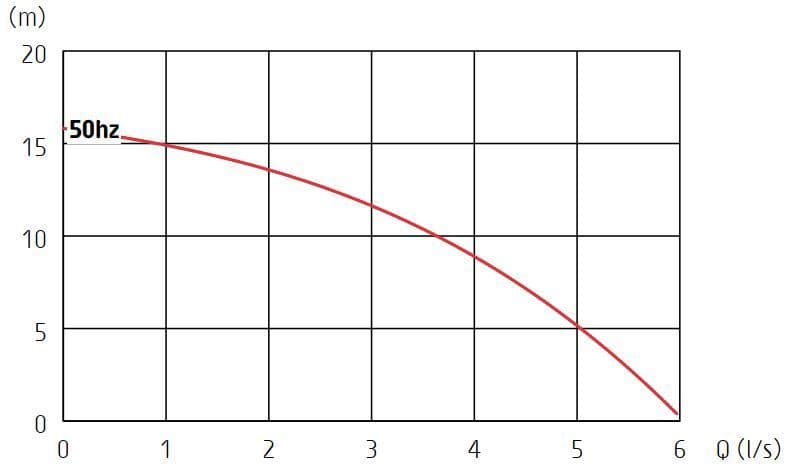

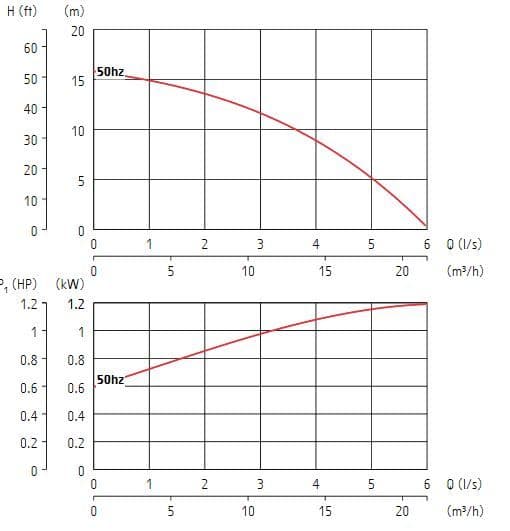

• Flow Rate: Up to 5.2 litres per second.
• Solids Handling: Capable of passing particles up to 5 mm in size.
• Depth and Temperature: Operates at depths of up to 10 meters and handles liquid temperatures up to 40°C.
• Weight and Size: Compact at 14.5 kg, with a height of 440 mm and diameter of 185 mm.

Notable Features

1. Durability: Designed to work with pH levels between 5-8, making it suitable for mildly acidic or alkaline environments.
2. Versatility: Equipped with a 2-inch discharge hose connection compatible with BSP or NPSM standards.
3. IP68 Rating: Ensures resistance to water ingress, critical for submersion.

Applications

The Grindex Mini is perfect for:

• Construction site dewatering.
• Managing water in confined spaces like basements or trenches.
• Handling abrasive particles in wastewater settings.

The Grindex Mini is a blend of lightweight design and robust functionality, making it an excellent choice for professionals requiring a reliable drainage pump for demanding conditions.

Grindex pumps are all about return on investment. The renowned, time-tested Swedish engineering and focus on quality, performance, and durability permeate everything Grindex do — down to every single screw.
Their complete commitment and responsibility distinguish Grindex from the rest.

SMART — THE INTELLIGENT SYSTEM
Grindex’s SMART electronic surveillance system, first developed in 1990, is a vital element in Grindex pumps. With its three-fold motor protection, it shields the pumps from electrical problems.
Built-in plug and pump; no need for external start boxes and control panels.
Phase-failure guard protects against phase loss.
Temperature guard stops the pump if it reaches high temperature.
Automatic restart after stop.
Phase-sequence control ensures that impellers always turn in right direction

Low life-cycle cost:

Just as only ten percent of an iceberg is visible, only the pump’s price tag is obvious at first. However, all recurring costs — installation, operation, inspections, and service — affect the pump’s total cost of ownership. With Grindex pumps you minimise the need for maintenance, reduce the number of unplanned and planned service standstills, and experience a prolonged equipment lifespan.

Reliability is enhanced further thanks to:
 Air valve that cools the pump should it run dry
 SMART motor protection protects the pump against electrical problems:
 Temperature switch cuts the power if the temperature gets too high
 Phase guard protects the pump by cutting the power if a phase fails
 Grindex Rotasense guard ensures the impeller turns in the right direction
 Built-in start equipment in almost all pumps, no need of external start equipment
 Optimised hydraulic design. Several solutions that minimises wear.
 Fewer components that makes inspection and service faster, easier and cheaper.
 Ergonomic design will simplify the pump handling.
