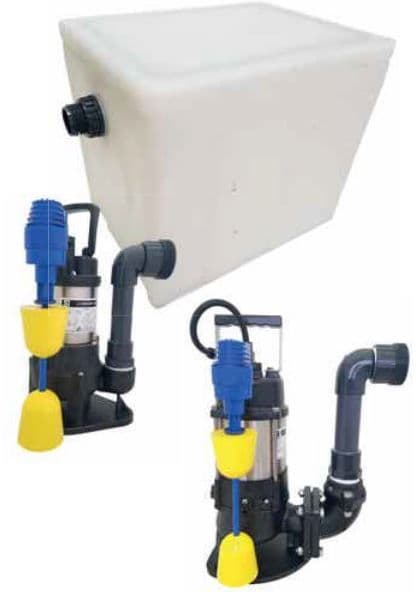

The JS BOX range from Henry Pumps is range of small packaged pumping stations designed purely for the domestic market and is suitable for the transfer of waste water from sinks, baths, showers and wash basins etc.

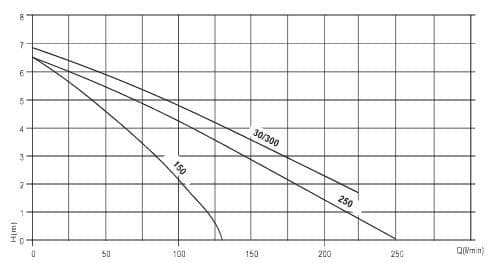

The JS BOX 150 is supplied with one of our JS150SV submersible sewage pumps which comes fitted with the AGMA W type float switch allowing the end user to adjust the differential between the low and high level operating points if desired. The JS150SV pump offers soft solids handling up to 25mm and benefits from a stainless steel shaft and outer motor casing. This pump weighs 6.6kg, is 230v, offers a maximum head of 7 metres and up to 130 litres per minute flow rate all from an efficient 0.15kW motor. Outlet size 32mm.
The JS BOX 250 is the heavier duty product in the range and is supplied with one of our JS250SV submersible sewage pumps which comes fitted with the AGMA W type float switch allowing the end user to adjust the differential between the low and high level operating points if desired. The JS250SV pump offers soft solids handling up to 36mm and benefits from a stainless steel shaft and outer motor casing. This pump weighs 15.2kg, is 230v, offers a maximum head of 8 metres and and impressive 220 litres per minute flow rate all from an efficient 0.25kW motor. Outlet size 38mm.
Both chambers have a 180 litre capacity.
All units are assembled to order so please allow a few working days for delivery.
Should you require something more specific to meet your needs, Henry Pumps do provide an in house design team to build a packaged pumping station exactly to your instruction. Please visit our packaged pumping station page by clicking here.
-
Condition:New
-
Product Code:9000-4060
-
Weight:10kg
