KDD Hatz Diesel Powered Diaphragm Pumps

Product Code: 060-872
Product Code: 060-872
Stock Status: In Stock
Order within to get it by .
In Stock
Prefer to pay by phone?
Call 0333 050 3748 for quick and secure payment with our friendly team.
You may also need

Koshin KDD Hatz Diesel Diaphragm Pumps – 2-Inch & 3-Inch

Dirty-Water Dewatering with Dry-Running Capability

The Koshin KDD-2R and KDD-3R combine diaphragm pumping technology with Hatz 1B20 diesel engines, providing a practical solution for construction drainage, excavation dewatering and applications where water arrives slowly or intermittently.

Unlike a conventional centrifugal water pump, the KDD is designed to continue operating when the intake draws air. This “snoring” capability makes it particularly useful for maintaining drainage in areas with low seepage, rather than only removing a large volume of standing water.

A straight-line flow path supports solids handling, with the 3-inch KDD-3R rated for particles up to 37mm. Both models include a wheel kit and handling handle, while the KDD-3R also features a protective crash frame and mud feet for demanding site conditions.

Hatz Diesel Power | Diaphragm Pumping | Dry-Running Capability | Straight-Line Flow | Wheel Kits Included

This page covers the recoil-start KDD-2R and KDD-3R. For an electric-start alternative, contact Henry Pumps about the DryMax range.

Why Choose a Koshin KDD Diaphragm Pump?

  • Suited to intermittent water inflow: Snoring capability allows the pumping mechanism to continue when the intake alternates between water and air.
  • Designed for solids-bearing water: The straight-line pumping arrangement provides an alternative to a rotating-impeller pump for suitable dirty-water duties.
  • Site mobility included: Wheels and a handling handle assist movement between pumping positions.
  • Narrow installation footprint: The listed 430mm width helps with restricted access and storage, subject to the actual route and handling clearance.

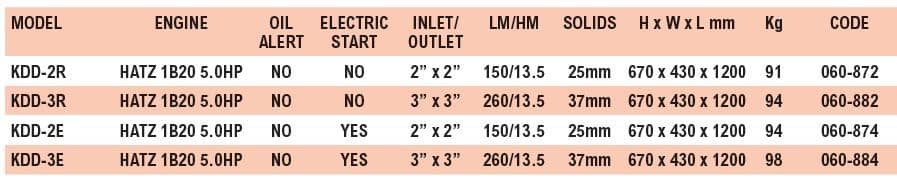

Model Comparison and Technical Specifications

Specification Koshin KDD-2R Koshin KDD-3R
Pump type Engine-driven diaphragm Engine-driven diaphragm
Engine Hatz 1B20 Hatz 1B20
Engine type Air-cooled, single-cylinder, four-stroke diesel Air-cooled, single-cylinder, four-stroke diesel
Starting method Recoil pull start Recoil pull start
Operating control Manual Manual
Inlet connection size 2 inches 3 inches
Outlet connection size 2 inches 3 inches

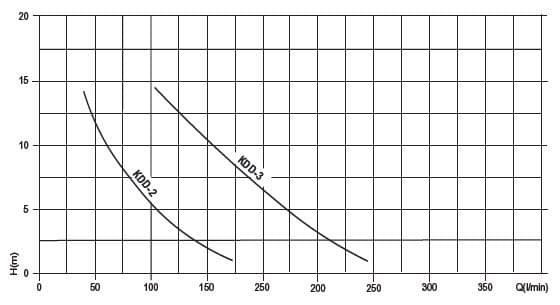

Listed maximum flow 150 litres/minute 260 litres/minute
Maximum flow in m³/hour 9m³/hour 15.6m³/hour
Listed maximum head 13.5 metres 13.5 metres
Dry-running / snoring capability Yes Yes
Wheel kit and handling handle Included Included
Additional site protection — Crash frame and mud feet
Listed dimensions, W × L × H 430 × 1,200 × 670mm 430 × 1,200 × 670mm
Listed weight 91kg 94kg
Engine fuel Diesel Diesel
Operating location Outdoors only Outdoors only

The published flow figures are not guaranteed delivery rates for every liquid or installation. The suction arrangement, discharge resistance, operating speed and material being pumped all affect performance.

The listed weights are not identified as dry or packaged weights. Allow for the complete equipment and handling arrangement when planning transport.

KDD-2R or KDD-3R: Which Model Should You Choose?

KDD-2R — 2-Inch Drainage and Slow-Seepage Duties

The KDD-2R is the smaller-capacity option, with 2-inch connections and a listed maximum flow of 150 litres per minute.

Consider it where the incoming water volume and discharge arrangement fall within its capability. A smaller hose arrangement may be more convenient where the additional capacity of the 3-inch model is unnecessary.

Have the expected solids checked against the selected pump before ordering.

KDD-3R — Greater Flow and 37mm Solids Handling

The KDD-3R increases listed maximum flow to 260 litres per minute, with 3-inch connections and a 37mm maximum solids size.

Its crash frame and mud feet provide additional protection and support for site applications.

Both models have the same 13.5-metre listed maximum head. The KDD-3R offers greater flow capacity, not a higher-pressure pumping duty.

What Does “Snoring” Mean?

In drainage work, a pump may remove standing water faster than fresh water seeps into the excavation. Its intake then begins drawing a mixture of air and water, or air alone.

The KDD’s snoring capability allows the diaphragm mechanism to continue working through these changing conditions. This is a useful distinction from a centrifugal pump that depends on liquid within its pumping section.

It makes the KDD worth considering for trenches, foundation excavations and collection points with intermittent inflow.

Dry-running capability concerns the pumping mechanism. It does not mean that the diesel engine can operate without lubricating oil, or that the equipment needs no supervision or maintenance.

Straight-Line Flow for Dirty-Water Applications

The KDD uses a diaphragm and one-way valves to move liquid, rather than a centrifugal impeller. Its straight-line flow arrangement supports the passage of suitable suspended solids.

For muddy water, sediment-bearing drainage or pumpable sludge, assess the material’s consistency, particle size and concentration, together with the hose arrangement.

A solids-passage figure is not permission to pump every object below that width. Long strips, ropes, wipes and dense accumulations of material can behave differently from separate suspended particles.

The 37mm figure applies to the KDD-3R; it should not be applied automatically to the 2-inch model. Provide Henry Pumps with details of the material before selecting either pump for a demanding wastewater duty.

Low-Seepage Drainage, Not High-Pressure Water Supply

The KDD’s main advantages are its diaphragm pumping action, solids handling and ability to tolerate air at the intake.

It should not be selected as a substitute for a high-pressure irrigation pump or solely on the assumption that every diesel pump delivers large volumes of water.

For a short, clear-water transfer where maximum throughput is the priority, a suitable centrifugal pump may be a better fit. For a drainage point that repeatedly runs low, the KDD’s snoring capability may be more valuable.

Choose around the actual job: water inflow, contamination, suction lift and discharge route—not engine size alone.

Keep the Discharge Open and Unobstructed

Dry running and pumping against a closed outlet are different conditions.

The KDD is a mechanically driven diaphragm pump. A closed valve, blocked hose or restrictive nozzle can place excessive pressure and load on the pumping system.

Do not use a delivery valve or trigger gun as though it were a safe way to stop the pump. Keep the discharge route open and use the correct engine stopping procedure when pumping needs to cease.

The listed head figure is not a guarantee that pressure will automatically stop rising at that value if the outlet is blocked. Any system requiring valves or pressure protection should be assessed before installation.

Wheel Kit Included — Check Access and Handling

Both models include wheels and a handling handle, helping move the equipment around the working area.

The narrow body can be useful where access or storage space is limited, but check the complete route, including turns, steps, soft ground and the space needed to manoeuvre.

The KDD-3R’s mud feet provide additional support for site positioning. Set up either pump on stable, level ground and follow the supplied instructions.

The wheel kit is not a road-tow trailer, and it does not make the pump suitable for one-person lifting.

What’s Included?

The selected KDD pump is supplied with its Hatz recoil-start diesel engine, wheel kit and handling handle.

The KDD-3R also includes the crash frame and mud feet described above.

This listing is not an advertised complete hose bundle. Confirm the required suction and delivery hoses, connection fittings, intake strainer and engine oil as part of your order.

Do not assume that accessories supplied with another Koshin range are automatically included with a KDD.

Hose Selection and Preparation

Use reinforced, suction-rated hose matched to the inlet size, with airtight connections and an appropriate strainer.

Have the delivery hose selected for the pulsating flow of a diaphragm pump, the material being transferred and the expected pressure. Avoid unnecessary reductions, kinks and restrictions, and support the hoses so they do not strain the pump connections.

Follow the KDD-specific commissioning instructions. Do not apply a centrifugal pump’s operating procedure simply because both machines are engine-driven.

Before starting, check the engine oil, fuel, guards, hose connections and discharge route. Monitor the receiving area and stop the pump if a blockage, leak or abnormal operating condition develops.

Important Notes

Operate outdoors only. Diesel exhaust contains carbon monoxide and other harmful pollutants. Never operate the engine in a building or enclosed or partly enclosed space, even with doors or windows open.

Keep the engine away from doors, windows and ventilation openings. The complete pump assembly must remain out of the water.

Do not operate against a closed or blocked discharge. Snoring capability does not provide protection against discharge obstruction.

Stop and isolate the engine, allow hot components to cool and release system pressure before maintenance. For contaminated-water service, use appropriate protective equipment and clean the pumping components before inspection.

Diesel powers the engine; these pumps should not be assumed suitable for transferring fuel, solvents or unapproved chemicals.

Why Buy from Henry Pumps?

Get practical selection advice from an independent pump specialist.

Henry Pumps can help assess the water inflow, solids content, suction arrangement and discharge route, then identify the appropriate pump and hose equipment.

Call 0333 050 3748 or email sales@henrypumps.co.uk for help selecting your Koshin KDD diaphragm pump.


product review overlay image

Customer reviews

No reviews left yet
Write a review

No reviews have been left for this product, be the first to leave a review
  • Condition:
    New
  • Product Code:
    060-872
  • Weight:
    91kg
Is this the right pump for you?

Suitable for

    • Construction trench and foundation dewatering
    • Slow-seepage and intermittent-inflow drainage
    • Dirty-water transfer within the selected solids limit
    • Muddy-water and pumpable-sludge duties

Not suitable for

    • Indoor or enclosed-space operation
    • High-pressure sprinkler and washdown duties
    • Oversized debris or unassessed fibrous waste
    • Fuel, solvent and unapproved-chemical transfer

Frequently Asked Questions

What is the difference between the KDD-2R and KDD-3R?

The KDD-2R has 2-inch connections, while the KDD-3R has 3-inch connections and greater listed flow capacity.

Both use a Hatz 1B20 recoil-start diesel engine and share the same listed maximum head.

The KDD-3R also has a stated 37mm solids capacity, plus a crash frame and mud feet. Select according to the incoming water volume, material and discharge arrangement.

Why choose a diaphragm pump instead of a centrifugal pump?

A diaphragm pump is worth considering where the task involves intermittent water inflow, air entering the intake or suitable solids-bearing liquids.

The KDD’s ability to snore is particularly useful after the initial standing water has been removed and fresh water only seeps in slowly.

A centrifugal pump may offer greater clear-water throughput, but maximum flow alone does not determine which design suits a drainage job.

Can the KDD run dry?

Yes. Dry-running capability is a specified feature of this range.

It allows the pumping mechanism to continue when the intake draws air, making it useful for low-seepage conditions.

The engine still requires correct lubrication, cooling and maintenance. Dry-running capability is not permission to ignore leaks, blockages, damaged components or an overflowing receiving tank.

Can the KDD pump sludge or sewage?

It can be considered for suitable dirty-water and pumpable-sludge duties, but the material needs assessing.

A liquid that flows into the suction line is different from compacted sludge or a mass of fibrous debris. The pump should not be treated as a macerator.

For sewage or heavily contaminated water, provide Henry Pumps with details of the consistency, solids and any wipes or fibres before ordering.

What maintenance does a KDD diaphragm pump need?

Follow the supplied engine and pump service instructions. Check the engine oil, air intake, hoses, connections, diaphragm and valves, with inspection appropriate to the material being pumped.

Investigate reduced delivery, leaks or unusual movement. Clean out deposits before they harden and drain the pumping section for storage as instructed.

Stop and isolate the engine, allow it to cool and release pressure before inspection or maintenance.
