Speroni KS801 and KS1100/PA Portable Self-Priming Jet Pumps

The Speroni KS range provides portable surface pumps for transferring water, supplying irrigation systems and drawing from tanks or shallow water sources. A carrying handle, stable stand and water-resistant rocker switch make them practical choices for domestic users, property maintenance teams and light industrial applications.

Choose the KS801 for clean fresh water, including stored rainwater and irrigation supplies. Choose the KS1100/PA for clean seawater duties, where its different shaft and seal materials are important to suitability. The KS1100/PA also offers higher delivery performance.

Both options use a 230V single-phase supply and are manually operated as supplied. Their self-priming design helps establish flow from a source below the pump, but the pump must first be filled with water. Automatic operation and dry-running protection require separately selected controls.

Key features and benefits

  • Portable design: an integral handle and broad stand make the pump convenient to move between suitable pumping locations.

  • Self-priming jet action: supports suction from tanks and shallow sources after the pump has been filled and the suction line correctly installed.

  • Two models for different water types: choose the KS801 for fresh water or the KS1100/PA for seawater applications.

  • Local rocker-switch control: provides straightforward manual starting and stopping at the pump.

  • Continuous-duty rating: supports extended pumping within the operating limits, with an adequate water supply.

  • 2-metre rubber power cable: supplied with each pump.

  • Optional suction kits: 4-metre and 7-metre kits provide a convenient way to assemble the suction side of a suitable installation.

Choosing the right KS model

KS801: clean-water transfer and irrigation

The KS801 suits clean-water jobs such as transferring water between containers, watering gardens and supplying small irrigation systems.

It combines a thermoplastic pump body, impeller and diffuser with a 304 stainless steel shaft and carbon/ceramic/NBR mechanical seal. Its published maximum flow is 58 litres per minute, with a maximum head of 42 metres.

Select this model for fresh-water applications where the required delivery rate and pressure fall within its performance curve. It is not the seawater version.

KS1100/PA: seawater transfer and marine applications

The KS1100/PA is the option for clean seawater transfer and suitable marine wash-down duties. It has a polypropylene body, thermoplastic impeller and diffuser, 316 stainless steel shaft and silicon carbide/Viton mechanical seal.

Its maximum flow is 70 litres per minute, with a maximum head of 50 metres.

Seawater suitability also depends on the installation. Hoses, valves, fittings and any controller in contact with the water must have compatible materials. The pump’s 316 stainless steel components have corrosion resistance, but service conditions such as salinity, temperature and exposure still matter.

Self-priming and suction lift explained

Before first use, fill the pump with water in accordance with the operating instructions. During priming, keep the delivery side open so air can escape.

Use an airtight suction line that rises towards the pump without high points that trap air. A suitable foot valve and strainer help retain prime and prevent larger debris entering the suction line. Keep the intake submerged as the source level falls.

Both models have a stated maximum suction lift of 8 metres under suitable conditions. This is the vertical distance from the source water surface to the pump, rather than the length of hose that can be connected. Suction-pipe resistance, air leaks and water temperature affect the lift achievable in practice.

Positioning the pump close to the source, with a short and adequately sized suction line, helps it establish and maintain flow. Neither pump should be started with an empty pump body or allowed to run dry.

Choosing hoses and the optional suction kit

Both models have 1-inch BSP inlet and outlet connections. Use reinforced suction hose or suitable rigid pipe on the inlet side; ordinary delivery hose may collapse under suction.

The optional 4-metre and 7-metre suction kits include reinforced hose, a foot valve and strainer, and a pump coupling for an airtight connection. Choose the length that reaches the water source without unnecessary extra hose.

The kit length does not represent a guaranteed vertical suction lift. Allow for the route to the source and the length needed to keep the intake submerged.

On the delivery side, choose hose or pipe rated for the working pressure. Long runs, small-bore hoses, restrictive connectors and multiple fittings reduce the flow available at the destination. For seawater use, check the compatibility of the complete hose and valve assembly.

Manual operation and optional automatic controls

The supplied rocker switch gives the operator control over starting and stopping. The pumps do not automatically respond to a falling source level or to a tap opening and closing.

A suitable pressure controller can provide demand-based operation and dry-running protection for an appropriate clean-water installation. It must be selected for the pump’s electrical requirements, available pressure and intended application.

For a KS1100/PA seawater installation, any controller that contacts the pumped water must also be suitable for seawater. Compatibility should be checked before choosing the control package.

Motor overload protection is separate from these functions. It does not replace a water-level control or guarantee protection when the water supply runs out.


For best results we recommend that a foot-valve and strainer should be fitted to the end of the suction hose. This is included with our 4 metre and 7 metre suction kits. These are available as an optional extra and include a pump coupling which is factory fitted to the hose for a vital, airtight connection. Fitted as standard with a carrying handle and a 2 metre rubber power lead. This pump is ideal for transfer and irrigation duties in domestic and light industrial applications.

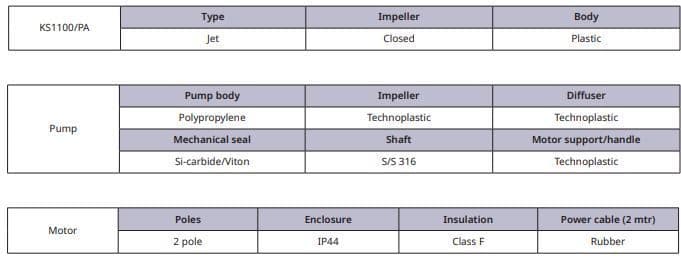

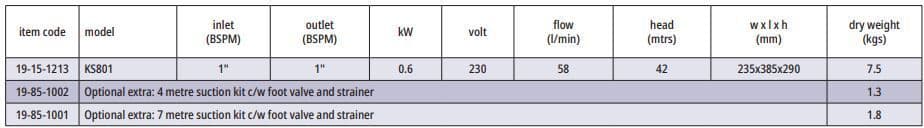

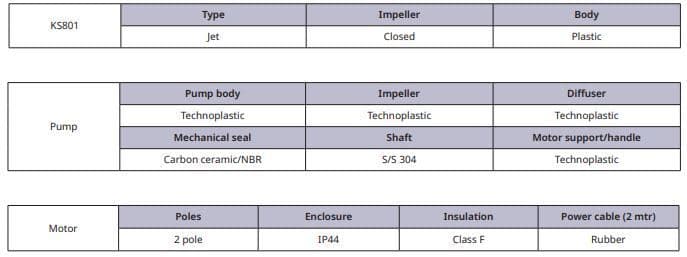

Technical specifications

Specification KS801 KS1100/PA
Pump type Portable, single-stage, self-priming jet pump Portable, single-stage, self-priming jet pump
Intended water Clean fresh water Clean fresh water and seawater
Electrical supply 230V single phase, 50Hz 230V single phase, 50Hz
Motor output 0.60kW 0.86kW
Maximum flow 58 litres/minute / 3.48m³/hour 70 litres/minute / 4.20m³/hour
Maximum head 42m 50m
Maximum suction lift 8m under suitable conditions 8m under suitable conditions
Inlet connection 1-inch BSP 1-inch BSP
Outlet connection 1-inch BSP 1-inch BSP
Maximum liquid temperature 35°C 35°C
Maximum ambient temperature 40°C 40°C
Duty rating Continuous within operating limits Continuous within operating limits
Pump body Thermoplastic Polypropylene
Impeller and diffuser Thermoplastic Thermoplastic
Shaft 304 stainless steel 316 stainless steel
Mechanical seal Carbon/ceramic/NBR Silicon carbide/Viton
Motor enclosure IP44 IP44
Motor insulation Class F Class F
Standard operation Manual rocker switch Manual rocker switch
Power cable 2m rubber cable 2m rubber cable
Dimensions W × L × H 235 × 385 × 290mm 209 × 415 × 284mm
Dry pump weight 7.5kg 11.0kg

Maximum flow and maximum head are separate limits and are not achieved simultaneously. Actual delivery depends on the suction conditions, vertical lift, hose diameter, hose length, fittings and pressure required at the outlet.

The kW figures are motor output, not electrical consumption, and should not be used alone to calculate running costs. Dry pump weights exclude power cable, hoses and connections. Allow additional installation space for pipework, fittings and any controls.

What is supplied and useful accessories

Standard pump supply

  • The selected KS801 or KS1100/PA pump and motor assembly.

  • Integral carrying handle and stand.

  • Water-resistant rocker switch for manual operation.

  • 2-metre rubber power cable.

Optional equipment

The 4-metre or 7-metre suction kit is an optional addition and is supplied only when selected. Each kit includes reinforced suction hose, a foot valve and strainer, and a pump coupling.

Other useful accessories include:

  • Delivery hose or pipe: selected for the required flow, pressure and water type.

  • Matching BSP adaptors, hose tails and clips: to connect and secure the chosen hose arrangement.

  • Suitable automatic controls: where the pump needs to respond to demand.

  • Dry-running protection: where loss of source water is possible.

  • Seawater-compatible valves and fittings: for the KS1100/PA when pumping salt water.

Practical selection advice from Henry Pumps

Tell us whether you are pumping fresh water or seawater, how far the water level sits below the pump, the delivery height and the proposed hose lengths. For irrigation or wash-down, include the flow and pressure required by the equipment at the outlet.

Henry Pumps is an independent pump specialist and can help you choose a suitable model, suction arrangement, delivery hose and control system.

Call 0333 050 3748 or email sales@henrypumps.co.uk for practical advice on your installation.

product review overlay image

Customer reviews

No reviews left yet
Write a review

No reviews have been left for this product, be the first to leave a review
  • Voltage:
    230v
  • Condition:
    New
  • Product Code:
    19-15-1213
  • Weight:
    7kg
Is this the right pump for you?

Suitable for

    • Garden irrigation
    • Tank and container transfer
    • Shallow-source abstraction
    • Seawater transfer and wash-down

Not suitable for

    • Dirty water and sewage
    • Seawater with the KS801
    • Dry running
    • Excessive suction lift

Frequently Asked Questions

What is the main difference between the KS801 and KS1100/PA?

The KS801 is intended for clean fresh water. The KS1100/PA is the seawater configuration, using a 316 stainless steel shaft and silicon carbide/Viton seal, and also provides higher flow and head capability. Choose primarily by the water type, then check the required pumping duty.

Does a self-priming pump still need filling with water?

Yes. Fill the pump before its first start and after it has been drained. The jet arrangement then helps establish suction through a correctly installed, airtight line. Keep the delivery open during priming so air can escape, and never run the pump with an empty body.

What should I consider when choosing accessories for seawater?

Check every component in contact with the water, including the suction valve, strainer, hose fittings and any pressure controller. A fitting that connects mechanically is not necessarily suitable for seawater. The pump’s 316 stainless steel components also remain affected by the conditions of use, so avoid treating the installation as corrosion-proof.

Can the pump run continuously, and will overload protection stop it if the source empties?

Both models are rated for continuous duty within their operating limits, with an adequate water supply. Motor overload protection does not monitor the source water level and should not be relied upon to prevent dry-running damage. Switch the pump off before the source runs out, or specify suitable additional protection.

Can the pump be left outside or placed in the water?

These are surface-mounted pumps. Position the pump above water on a stable base in a sheltered, ventilated location, with the electrical connections suitably protected. The IP44 enclosure and water-resistant switch do not make it submersible or suitable for an exposed installation without weather protection.

What maintenance and storage precautions are needed?

Keep the suction strainer clear, inspect hoses and connections for leaks, and check the cable and switch for damage. Before extended storage, rinse and drain the pump thoroughly and keep it in a dry location. Drain it completely where frost is possible, and refill it before restarting. Isolate the electrical supply before inspection or maintenance.
