Liberator Vortex Submersible Drainage Pump

Liberator Vortex Pump – Powerful Solids Handling for Tough Site Drainage

The Liberator Vortex is a rugged, high-performance submersible drainage pump built for challenging site conditions where solid-laden water and debris are common. Available from Henry Pumps, this model takes the proven design of the original Liberator and enhances it with a vortex impeller, enabling exceptional solids handling without clogging.

Perfect for construction, utilities, flood response, and industrial maintenance, the Liberator Vortex is trusted for its durability, portability, and ability to run reliably even in the harshest environments.

Efficient Drainage with Superior Solids Tolerance

At the heart of the Liberator Vortex is a recessed vortex impeller that allows soft and stringy solids up to 38mm in diameter to pass through the pump without damaging the internals. This makes it an ideal choice for sites where water carries debris such as sand, sludge, silt, rags, or general site waste.

Key Features of the Liberator Vortex Pump:

• ✅ Vortex Impeller Technology – Handles solids and reduces clogging risk

• ✅ Robust Cast Construction – Built to withstand demanding site conditions

• ✅ Submersible Design – Suitable for deep pits, sumps, and excavations

• ✅ Manual or Auto Operation – With or without integral float switch

• ✅ Site-Ready Portability – Lightweight, compact and easy to deploy

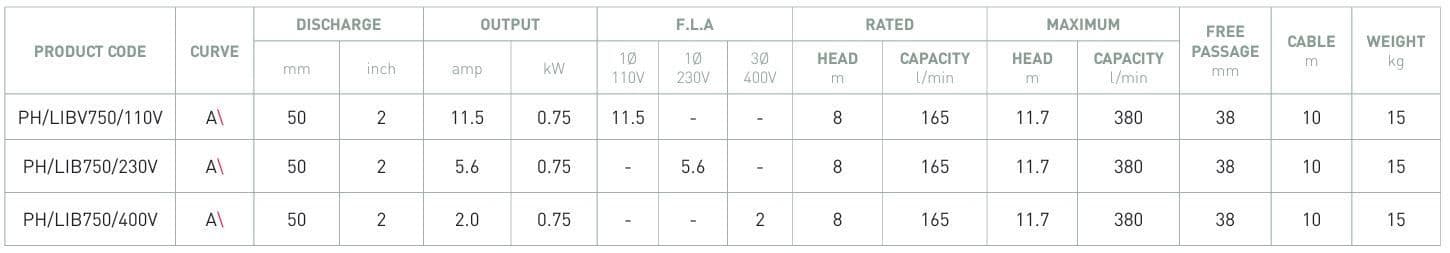

Technical Specifications:

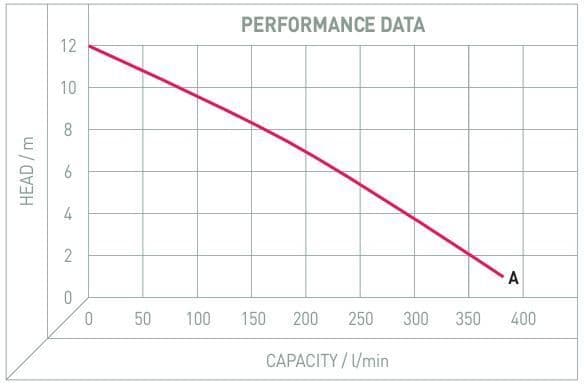

• Flow Rate: Up to 378 litres/min

• Maximum Head: 11.7 metres

• Solids Handling: Up to 38mm diameter

• Power Options: 110V, 230V or 400V

• Outlet Size: 2" (50mm)

• Weight: 15kg

Ideal For:

• Construction site water containing silt and solids

• Flood water with debris and waste

• Underground utilities and infrastructure pits

• Temporary pumping for wastewater, washdown, and emergency drainage

• Areas with unpredictable or variable solid content

When Reliability and Solids Handling Matter Most

The Liberator Vortex is the go-to pump for engineers and site teams needing powerful drainage performance with the added benefit of solid-passing capability. Backed by full UK support from Henry Pumps, it delivers peace of mind and long-term performance in every application.

💡 Need help choosing between Liberator models?
Ask us about flow rate, head, or solids handling guidance — we’ll help you find the right pump for the job.
