Lightweight Pedestrian Hose Ramp

Manufactured right here in the UK, the lightweight pedestrian hose ramp offered exclusively by Henry Pumps is a hose ramp system that can be handled by one person and is designed for the conveyance of liquids including water, sewage sludges and slurries.

Acting just like any other length of hose in the system, the lightweighht pedestrian hose ramp allows the user to pump liquid across paths while minimising impact to their operation.  This robust pedestrian hose ramp allows people and mobility scooters, wheelchairs etc to cross without disrupting a pumping application.

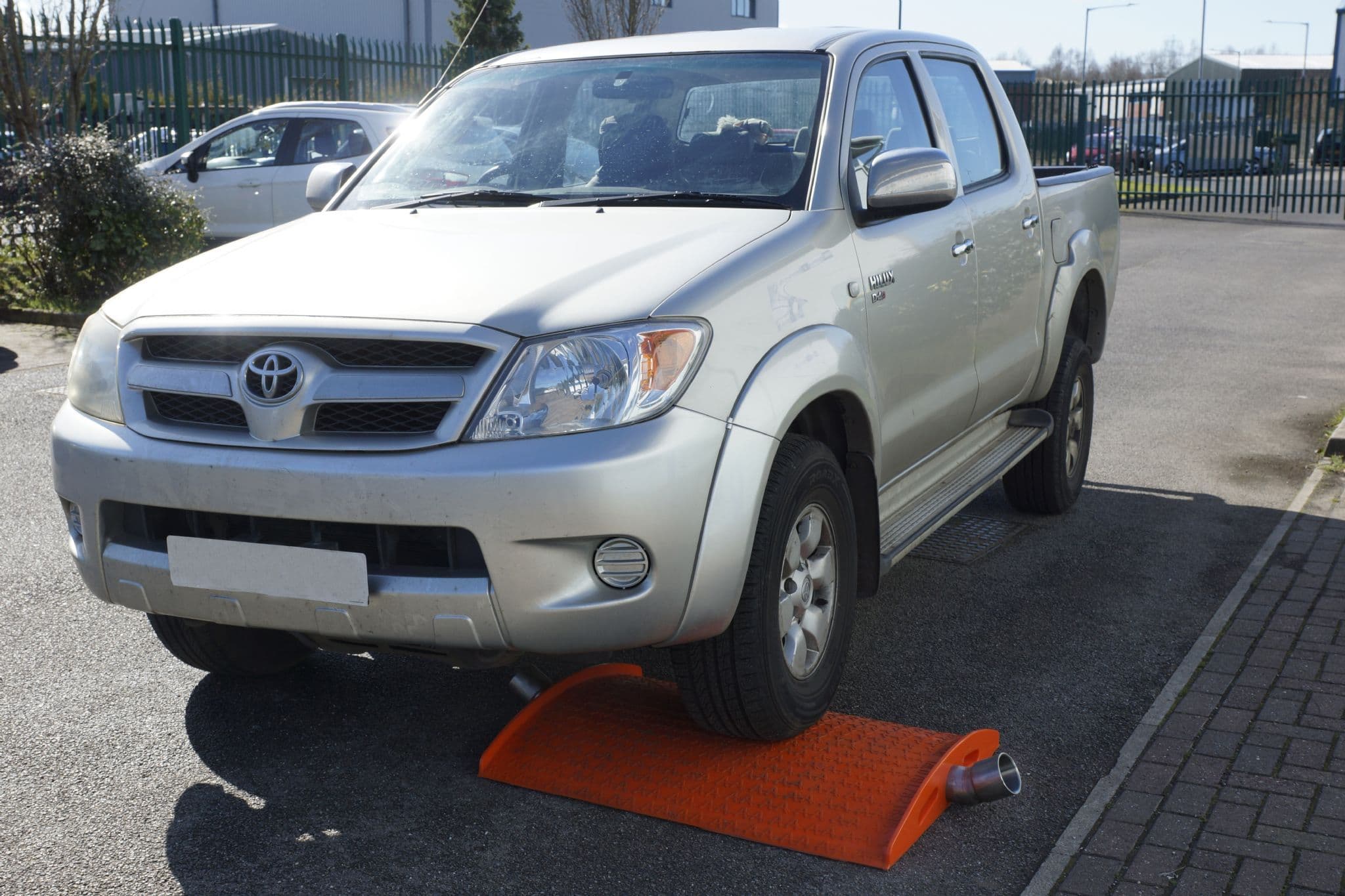

Do away with the need to bury pipework or erect costly overhead gantry systems.  The lighteight pedestrian hose ramp from Henry Pumps has been proof load tested for pedestrians and mobility vehicles.

Benefiting from a 3 inch BSP thread as standard, this allows the pedestrian hose ramp to be extremely versatile and we can adapt it to any coupling - Bauer, Perrot, Storz, Cam, Fire Coupling etc.

Many years combined experience of building and working with road ramps has allowed us to offer this brand new design.  No cumbersome box sections or sharp triangular apex here, instead we have engineered the unit offering a beautiful low apex curved design, ensuring operator comfort when traversing the ramp.

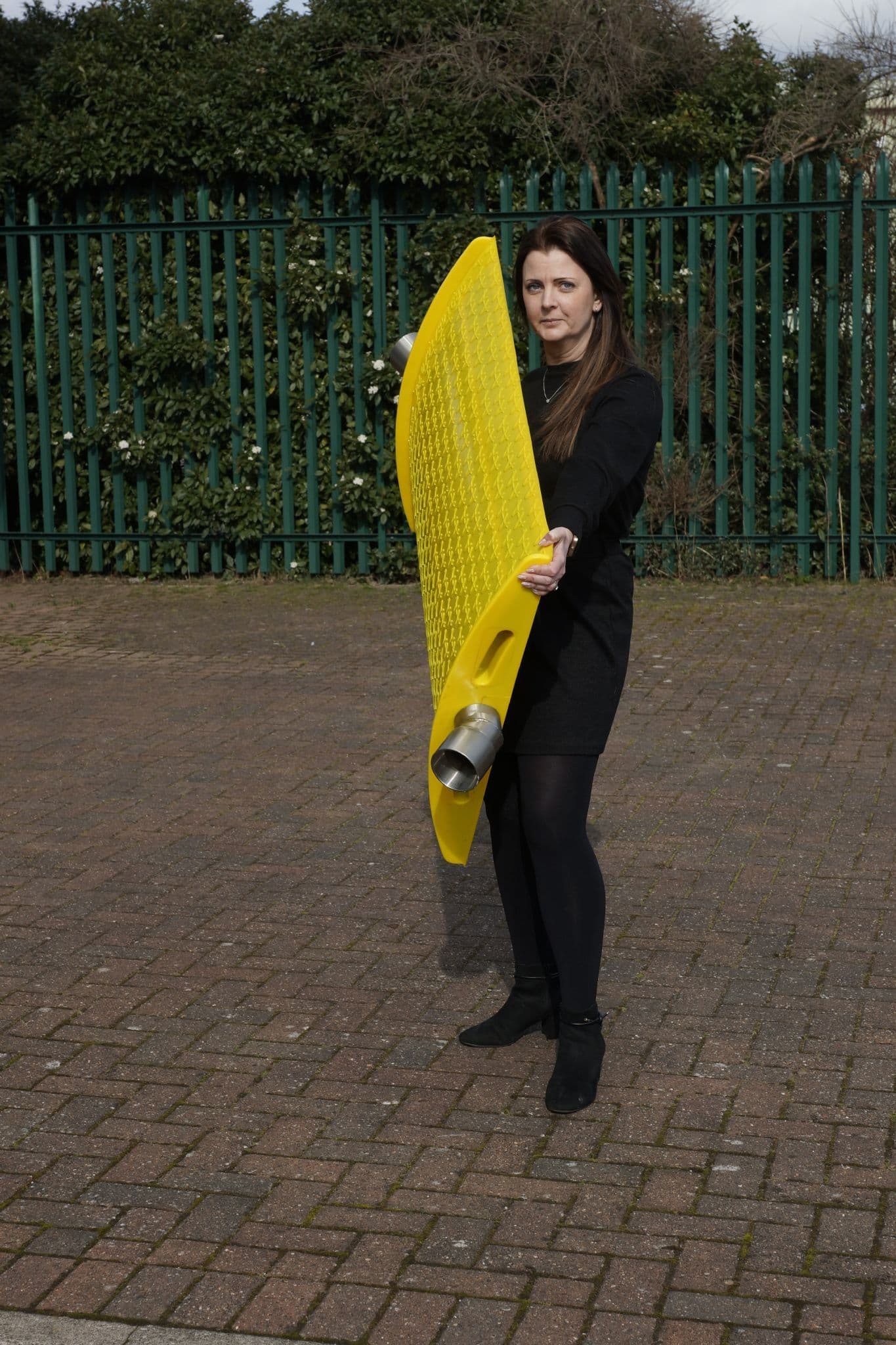

Above: can easily be handled by one able person.

As well as the user being able to pump through the ramp on discharge, this product is so versatile that it will also withstand a vacuum, making it perfect to be utilised on suction applications too, for example, a vacuum tanker.

Finally the pedestrian hose ramp is completed in an anti-slip material and high visibility finish.

Uses:

   Clean and dirty water
   Sewage transfer
   Slurry
   Overpumping
   Construction site dewatering
   Quarries
   Wastewater
   Tunnelling
   Industrial processes
   Emergency pumping
   Roads, Yards, Paths, Factories etc.

*System design and velocity calculations need to be taken into consideration.

Weight: 25kg.
Overall Length: 1300mm.
Width: 850mm.
Height: 100mm (crossing section).

The ramp alone has been pressure tested successfully up to 20 bar (couplings not included during the test).

The lightweight pedestrian road ramp can also be linked together where required and bulk discounts are available for multiple units.  In addition, custom specifications and lengths can be engineered.  Please let us know your exact requirements and we will be happy to assist.
