The PM-45A, manufactured by the water industry leading experts at Pentax is a single phase, 230v fully automatic electronically controlled booster pump unit fitted with our premium Watertech Presscontrol pressure controller, which is pre-wired to the pump itself, taking the hassle out of the installation for you.
Suitable for hot or cold pressure boosting, the Pentax PM45-A is supplied with 1 inch female thread on pump inlet, 1 inch male outlet thread on the presscontrol unit.

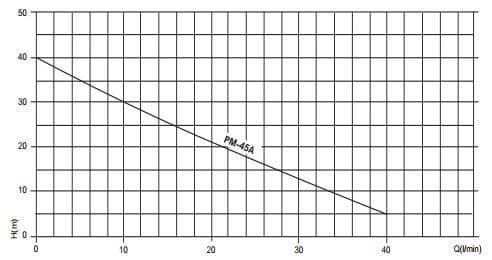

Maximum flow rate of 40 litres per minute, maximum pressure 4 bar.
Being fully automatic, this pump turns on when an outlet is opened and switches off in approximately 6-8 seconds when outlet is then closed. Also has the feature of dry run protection built-in as standard, taking all the worry and stress away from you.
Peripheral positive displacement pump with frontal suction for small household systems and simple industrial applications; characterised by a considerable ratio between performance and required output.
Non-self priming. Flooded suction applications only. Clean water free from particles only.
CONSTRUCTION FEATURES
Pump body - Bronze (BR)
Motor bracket - Bronze (BR)
Impeller - Brass
Mechanical seal - Ceramic graphite
Motor shaft - Stainless steel AISI 416
Liquid temperature - 0 - 90 °C
Operating pressure - max 6 bar (PM45)
MOTOR
0.37kW, 2.3amp, 2 pole induction motor - 1~230v-50Hz
Insulation class -F
Protection - IP44
We can also offer this unit in 110v if required. Contact us for a price.
