Sanimax Under Sink Waste Pumping Unit

The Sanimax are a range of complete wastewater pumping units that are for installation at floor level and fitted with a submersible pump from the Robusta or MF ranges.

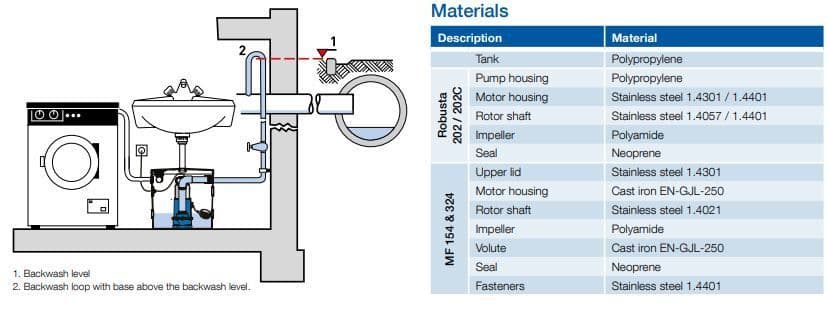

Suitable for the removal of liquids containing solid particles up to 30mm (model MF324HW) from wash-hand basins, domestic washing machines, or showers, from areas below the sewer level.

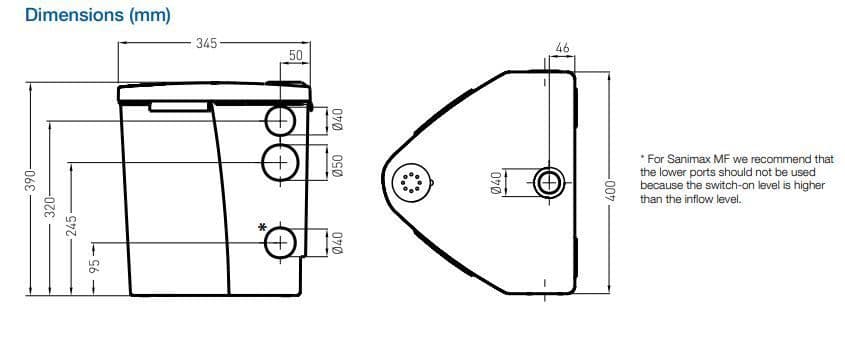

The compact triangular design of the Sanimax unit optimises space beneath a hand-wash basin.

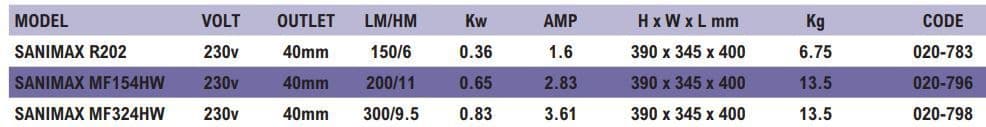

Users have a choice of three different pumps that can be installed - the Robusta 202 TS or MF 154 & 324 pumps, complete with non-return valve and level control.

A separate check valve should be used at heads over 5m.

Seven ports (5 x 40mm, 2 x 50mm), ready-prepared with seals, which can be used for inflow, discharge, power cable, or flexible hose connection to a washing machine (¾" adaptor supplied).

Solids handling:

R202: 10mm.
MF 154W: 20mm.
MF 324HW: 30mm.

Ideal for under sink, or utility room pumping.  The MF324HW has increased solids handling of 30mm and would therefore be an excellent choice for annexe/granny flat etc.
