Sewage Pump Control Panel

Our direct on line control panels for sewage pumps are supplied within an IP54 Steel enclosure with interlock main isolater. Line fuses and overload relays. Transformer for low voltage circuit, auto changeover relay (twin pump) run and trip indicators and hour counter, auto/off/ manual switch. Alarm circuit 24v AC. Single pump panels require a two float operation (three if using the alarm feature). Twin pump panels require a three float operation (four if using the alarm feature).

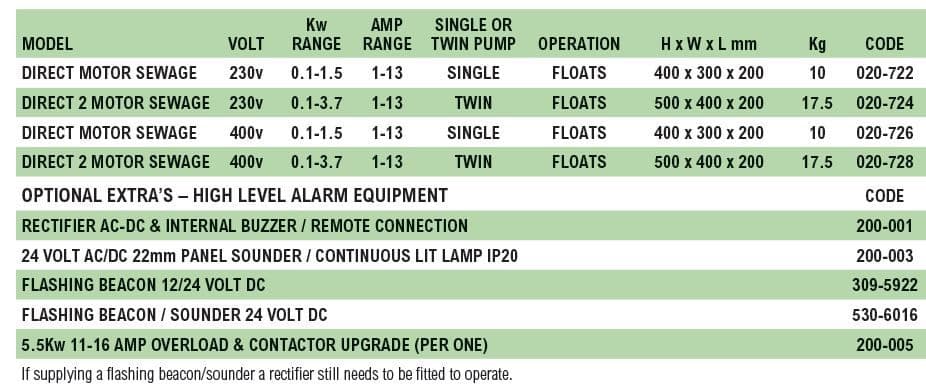

If supplying a flashing beacon/sounder only, a rectifier still needs to be fitted to operate.

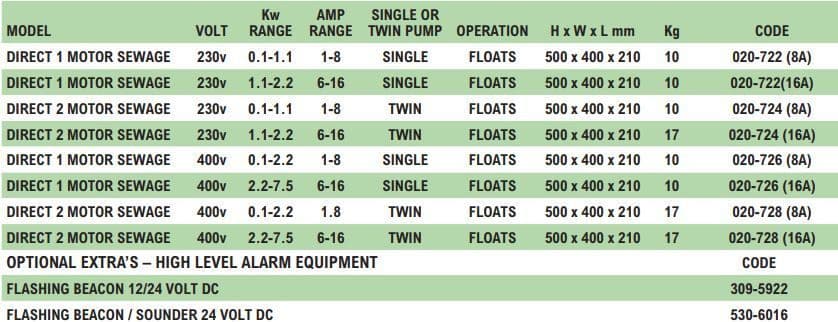

The overloads are fitted to suit (1-8 Amps) for motors up to 3.7kW on the standard panel.  An upgrade can be added on the drop down menu for motors up to 5.5kW and up to 16amps.  Please advise when ordering.

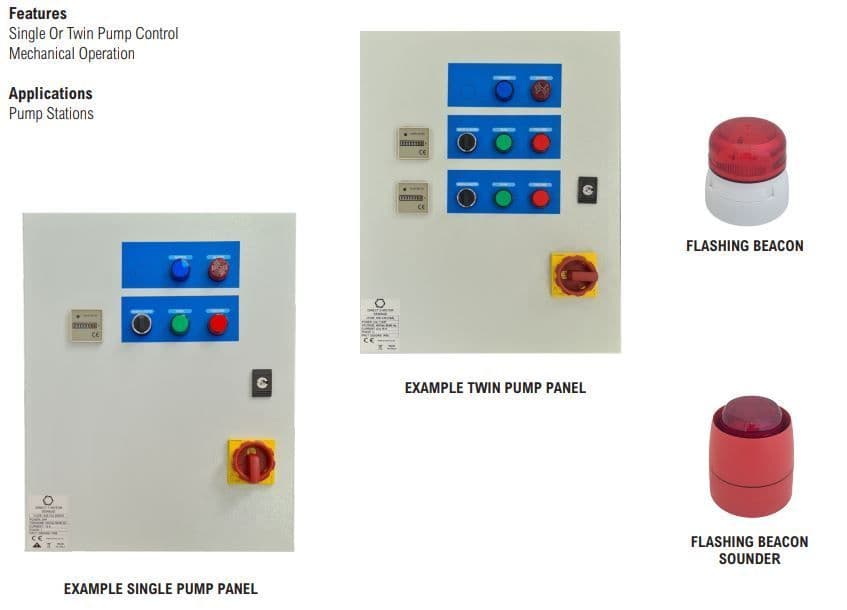

Features

Single Or Twin Pump Control
Mechanical Operation
Optional Alarm Features

Applications

Pump Stations
