Sewage Safe 400 230V Chamber-Only Kit
Complete Pre-Assembled Sewage Pump & Discharge Fittings (No Hose)

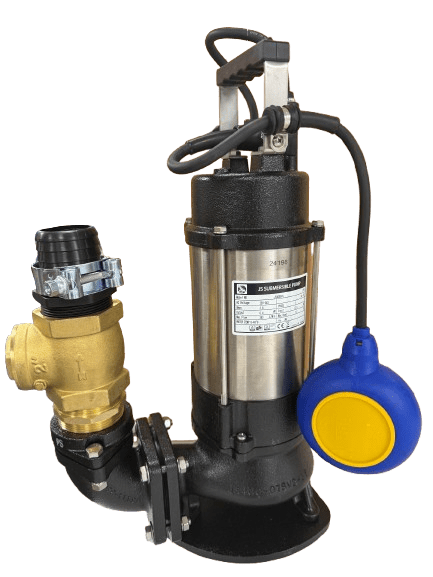

The Henry Pro Sewage Safe 400 230V Chamber-Only Kit is a fully-prepared, ready-to-install sewage pumping solution built around the ultra-reliable JS-400SV 2" Vortex Sewage Pump. Designed for domestic and light-commercial applications, this kit includes everything you need to connect directly into your chamber and pipework without any hose included perfect for installers who will be hard-piping in 2" PVC/MDPE.
Whether youre upgrading an old pump, installing a new treatment plant chamber, or fitting out a property with a sewage sump, this kit offers maximum reliability, easy integration, and professional-grade build quality.
Key Features & Benefits
Complete Chamber-Ready Pumping Kit (No Hose Included)
Ideal for engineers and homeowners planning to connect directly into fixed pipework. Everything required for the discharge connection is supplied and pre-configured.
Powered by the JS-400SV Heavy-Duty Sewage Vortex Pump
-
2" (50mm) discharge
-
260 litres/min max flow
-
7.5m max head
-
36mm soft solids handling
-
Vortex impeller for sludge, waste water and sewage
-
Automatic operation via MAC3 float switch
-
10m power cable (230V)
-
Renowned reliability for sewage chambers, treatment plants, cesspits and pump stations
Pre-Assembled 2" Discharge Fitting Set incl. PTFE thread tape
Professionally prepared so installation is quick and leak-free:
-
2" Male BSP Nipple screws directly into the pump outlet
-
2" Swing Check Valve prevents back-flow and keeps the chamber safer & cleaner
-
2" BSP MaleHose Tail ready to connect to your chosen fixed pipework or fittings
-
2 × Heavy-Duty Stainless Clamps
Everything arrives assembled as a compact discharge stack, reducing labour time and ensuring a perfect seal.
Perfect for Domestic & Light Commercial Installations
Suited for:
-
Septic tanks
-
Sewage treatment plant chambers
-
Basement & WC waste sumps
-
Pubs, cafés & small commercial units
-
Holiday parks & caravan sites
-
Replacement or upgrade of older 2" sewage pumps
Robust, quiet in operation, and built for long service life.

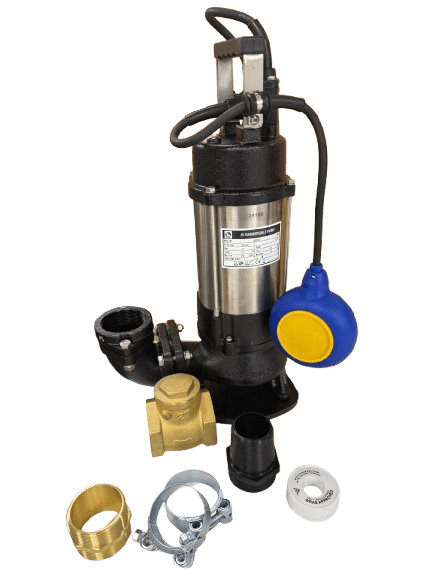

Whats Included in the Chamber-Only Kit
-
JS-400SV 230V Sewage Vortex Pump (Automatic with Float Switch)
-
Factory-Assembled Discharge Kit
-
2" Male BSP Nipple
-
2" Swing Check Valve (non-return)
-
2" BSP Hose Tail
-
Stainless clamps
-
PTFE thread tape
-
-
Henry Pumps Quick-Start Guide
No hose is included in this model its designed specifically for hard-piped installations.
Optional Extras (Dropdown Menu on This Page)
6m, 10m, 20m, or 30m Sewage Safe 400 Hose Kit.
If you need hose instead of fixed pipework, upgrade to one of our heavy-duty 2" hose kit, which includes a complete ready-to-use discharge line.
High-Level Float Alarm System
For improved safety, monitoring and peace of mind. Alerts you if the chamber water level rises too high (ideal for landlords, treatment plants, basements & remote sites).
Why Choose Henry Pumps?
With thousands of specialist pumps sold across the UK, Henry Pumps is trusted by homeowners, installers and commercial operators who demand reliability, fast delivery, and professional-grade equipment. Our bundles are designed to remove the guesswork, reduce installation time and ensure compatibility.
Need Advice?
If youre not sure which bundle you need, our technical team is here to help.
Email: sales@henrypumps.co.uk
Tel: 0333 050 3748
Customer reviews
East to install.
Bought this on Henry's recommendation. To be honest, this was all new to me, so being able to buy a pre-assembled kit like this made it so easy to understand and follow. I was literally setup and pumping within ten minutes. Would highly recommend. Thanks Henrys!
Michael M. | Reading | December 2025
Made is all so easy!
Everything in one box and ready to go. Made replacing our septic pump setup a doddle.
David Styles | Oxfordshire | June 2026
-
Brand:JS
-
Condition:New
-
Product Code:JS400SVAKit
-
Weight:25kg
Suitable for
- Domestic & Light Commercial
- Septic Tanks & Sewage Treatment
- Sewage, Wastewater, Soft Solids
- Replacing older 2" sewage pumps
Not suitable for
- Heavy-sludge, slurry, gravel
- Grease heavy commercial kitchen waste
- Chemicals, Detergents
- Fuel & Oils
Frequently Asked Questions
No - this kit is designed to be installed into an existing or separately supplied sewage chamber, sump, treatment plant chamber or pump well.
It includes the pump and discharge fittings, but not the chamber itself. If you need a complete packaged pump station including chamber, pipework and controls, a different solution may be required.
Choose the kit if you want the pump, non-return valve and main discharge fittings supplied together and pre-configured.
This reduces the risk of missing parts, incompatible fittings or poor sealing, and can save time during installation. If you already have suitable valves, fittings and pipework in place, the pump-only option may be enough.
The swing check valve acts as a non-return valve. It helps prevent pumped sewage or wastewater from flowing back into the chamber after the pump stops.
This is important because backflow can refill the chamber, cause unnecessary pump cycling and make the system less effective.
Yes, this kit is designed for sewage and wastewater applications. The JS-400SV vortex pump is listed with 36mm soft solids handling, making it suitable for foul water and sewage containing soft solids.
It should not be used for wipes, sanitary products, nappies, rags, cloths or other materials that should not be flushed.
Yes. The pump is supplied with an automatic MAC3 float switch, allowing it to switch on and off as the water level rises and falls in the chamber.
The chamber must have enough space for the float to move freely without catching on the pump, wall, pipework or debris.
This kit is based around a 2" / 50mm sewage pump discharge and is intended for connection into suitable 2" fixed pipework or compatible discharge fittings. The product page describes it as suited to installers hard-piping into 2" PVC/MDPE but it could also be used with MDS etc.
If the existing pipework is a different size, additional fittings or a different setup may be required.
