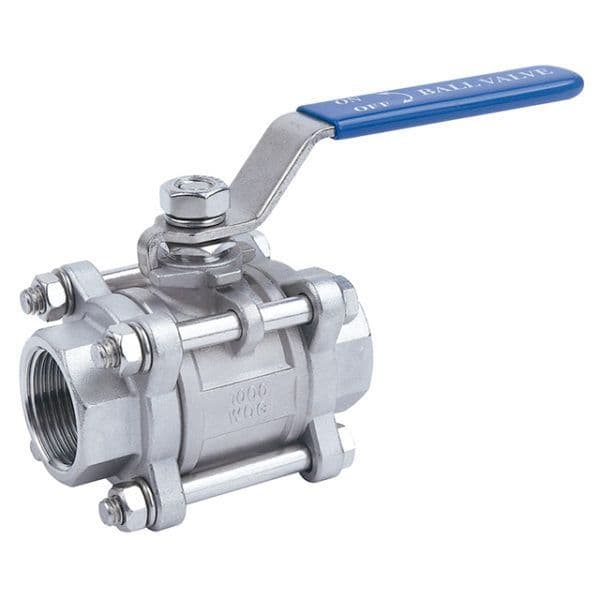

Stainless Steel Ball Valve 3 Piece

Stainless Steel Three-Piece Ball Valve – Lever Operated, Full Bore, BSP Ends

The Stainless Steel Three-Piece Ball Valve is a premium, full-bore isolating valve engineered for easy maintenance, high durability, and reliable flow control in aggressive and high-pressure environments. Constructed from CF8M (AISI 316) stainless steel and fitted with PTFE seats, this lever-operated valve offers excellent resistance to corrosion, chemicals, and thermal extremes.

Its three-piece body design allows for fast inline servicing without disturbing pipework—ideal for industries where downtime is costly. With full bore construction and BSP threaded ends, the valve ensures unrestricted flow and minimal pressure drop, making it suitable for chemical processing, food and beverage, water systems, and general industrial applications.

Key Features:

✅ Stainless Steel Body (CF8M / AISI 316) – High-grade material suitable for corrosive media
✅ Three-Piece Design – Easy disassembly and maintenance while valve remains in-line
✅ Full Bore – Maximum flow with minimal turbulence or restriction
✅ PTFE Seats – Excellent chemical resistance and reliable sealing
✅ Lockable Lever Handle – Manual control with added safety locking function
✅ High Working Pressure: PN63 (up to 63 bar)
✅ Wide Temperature Range: -20°C to +180°C
✅ Threaded BSP Ends – Compatible with standard pipe fittings
✅ Anti-Blowout Stem – Enhanced safety in high-pressure environments

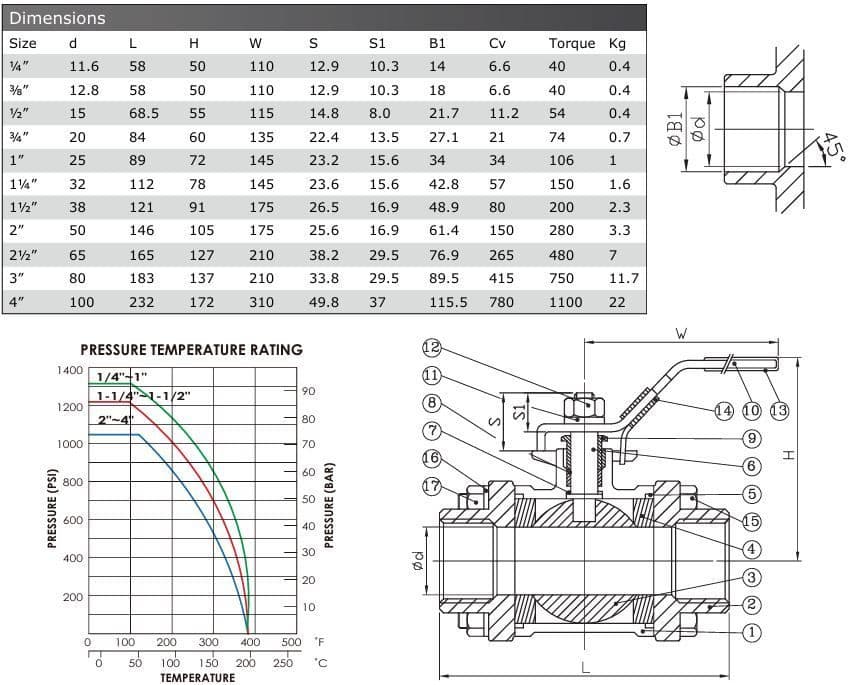

Technical Specifications:

• Body Material: CF8M (316 Stainless Steel)

• Ball & Stem Material: Stainless Steel AISI 316

• Seats & Seals: PTFE

• End Connection: BSPP Female

• Design Pressure: PN63

• Temperature Range: -20°C to +180°C

• Operation: Lever Handle, Lockable

• Sizes Available: ¼" to 4"

Common Applications:

• Chemical and Petrochemical Processing

• Pharmaceutical and Food Manufacturing

• Water and Wastewater Systems

• Breweries and Distilleries

• Oil and Gas Installations

• General Industrial and Plant Maintenance

Built for Demanding Environments and Long-Term Service

The Henry Pumps Stainless Steel Three-Piece Ball Valve is a top-tier choice for engineers and technicians who demand maximum performance, corrosion resistance, and easy inline maintenance. It’s especially useful in processes requiring regular cleaning or disassembly without disrupting the pipeline.

📞 Need support with sizing, chemical compatibility, or installation?
The technical team at Henry Pumps is ready to assist.

📩 sales@henrypumps.co.uk
📞 0333 050 3748
