Trojan Vortex Above Ground Sewage Pump Station

T-T Trojan Vortex – Robust Above Ground Pumping Station for Wastewater & Effluent Applications

The T-T Trojan Vortex is a compact, fully automatic above-ground pumping station designed to handle domestic, industrial, and commercial wastewater applications where gravity drainage is not possible. Engineered to deliver reliable and efficient performance, this system features vortex impeller technology to minimise blockages and ensure smooth solids handling.

Ideal for installations in locations with limited access to underground drainage systems, the Trojan Vortex provides a versatile plug-and-play solution, removing the need for costly civil engineering works.

Key Features:

✅ Above Ground Design – Quick installation with minimal excavation required
✅ Efficient Solids Handling – Vortex impeller capable of handling soft solids and waste
✅ Fully Automatic Operation – Includes integral control system and level switches
✅ Corrosion-Resistant Construction – Tough polyethylene tank with durable pump internals
✅ Compact Footprint – Ideal for areas with restricted space
✅ Pre-Assembled – Delivered ready to install, reducing time and labour on site
✅ Optional Alarms & Control Panels – Enhances monitoring and protection

Typical Applications:

• Domestic dwellings without mains drainage

• Modular buildings and temporary site accommodation

• Small commercial units and retail premises

• Outbuildings, basements, and extensions

• Agricultural or rural sites with limited infrastructure

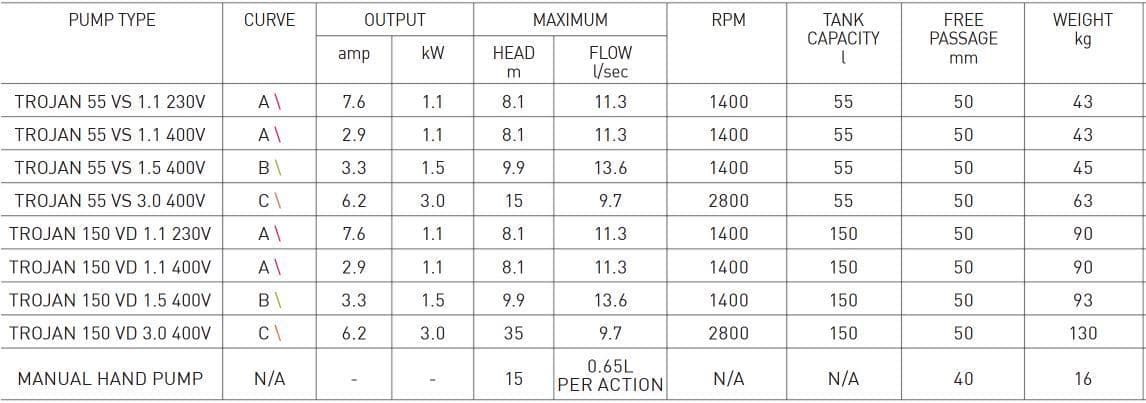

Technical Overview (from datasheet):

• Tank Capacity: Up to 150 litres

• Pump Type: Vortex submersible

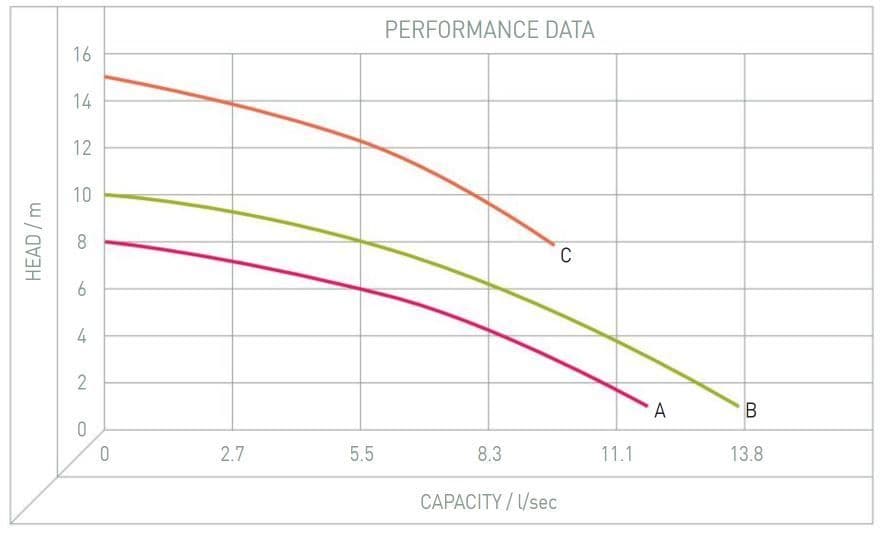

• Maximum Flow: 13.6 l/s (model-dependent)

• Head Height: Up to 15m (model-dependent)

• Inlet Connection: 55VS: DN50 or DN100.  150VS: DN100 or DN150.

• Outlet Connection: DN100 (80mm available on request).

• Vent & Cable Entry: 50mm and supplied with 3.5 metre cable to motor and panel.

• Power Supply: Single or three phase options

• Level Control: Float switch included

• Material: UV-stabilised polyethylene tank

🛠️ Installation Tip: Position on a firm, level surface with easy access for maintenance. Consider frost protection for external installations.

🔧 Ready-to-Install Pumping Station

With minimal civil work required and simple electrical connections, the Trojan Vortex is the go-to solution when cost-effective, fast installation is essential.
