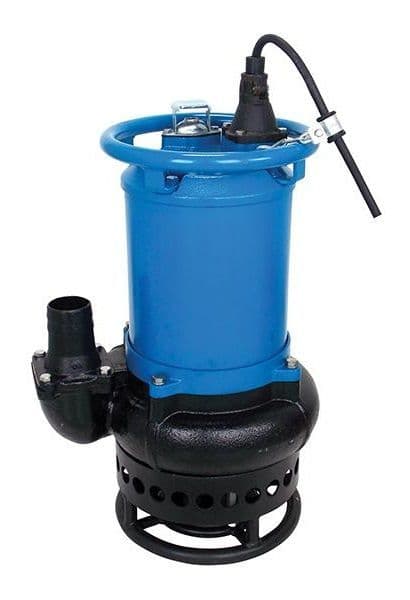

Tsurumi GPN High Flow Slurry Pump with Agitator

Manufactured by Tsurumi Pumps, the GPN models are heavy duty drainage pumps, capable of very large flows, which incorporate specifically designed 4 pole motors for excellent wear resistance.

Henry Pumps Ltd, in partnership with Tsurumi, have agreed to plant a tree for every Tsurumi pump sold in 2025!

The side discharge, spiral design and the rotating agitator facilitate the passage of sand, bentonite, pulverized solids etc. without clogging.

Extended Warranty available exclusively from Henry Pumps: Standard 3 year warranty, extendable to 5 years with servicing by an approved Henry Pumps engineer, ensuring longevity and peace of mind.

The design of the Tsurumi GPN range also incorporates a motor frame and pump casing in grey cast iron, with the suction cover and impeller in chromium iron. Heavy duty motors are fitted with internal overloads, which enable simple installation and direct connection to the power supply. Each model has a motor shaft is in Chromium Molybdenum steel giving the enhanced tensile strength required for extreme slurry and hard solids handling duties. They are fitted with ultra-hard-wearing, twin mechanical seals (inboard: silicon carbide-silicon carbide) in an oil chamber that has an oil lifter for positive seal lubrication in any position.

Maintenance is straightforward too, with a simple replacement of wearing parts without the need for a workshop or even special tools.

All models of the Tsurumi GPN high flow, slurry submersible pumps are supplied with 20 metres of heavy duty rubber power cable although IDS (individually screened cable) is available, at an extra cost, on all models, for quarry and mining applications.

Each model is supplied with a hose connector in cast iron.

The Tsurumi GPN is suitable to pump solids content up to 25%.

Offered with a 3 year guarantee, the Tsurumi GPN range of submersible drainage pumps are the ideal choice.

Full technical data sheet for the Tsurumi GPN slurry agitator pump range can be viewed by clicking here.
