Manufactured by Tsurumi Pumps, the KTD are heavy-duty drainage pumps which offer excellent wear resistance for maximum durability, with minimum maintenance, during prolonged operation in the severest conditions.
Fitted with semi-open type impellers, in chromium iron for wear resistance, pump chambers and casings in grey cast iron and suction covers in ductile iron. Each model of the Tsurumi KTD has a built-in agitator, also in chromium iron, to stir sand, bentonite, pulverized solids etc. into suspension for pumping..
The heavy duty motors are fitted with internal overloads, enabling simple installation and direct connection to the power supply. The 420 stainless steel shafts are fitted with ultra hard-wearing, twin mechanical seals (inboard: silicon carbide-silicon carbide), in an oil chamber, with patented oil lifters, for positive seal lubrication in any position. This feature, combined with the water and air cooling channel to the top outlet, enables the Tsurumi KTD pumps to operate for extended periods in little or no water.
Maintenance is also straightforward, with a simple replacement of wearing parts without the need for a workshop or even special tools.
The Tsurumi KTD is suitable to pump solids content up to 10%.
Both models are supplied with 20 metres of heavy duty rubber power cable, although IDS (individually screened cable) is available, at an extra cost, for quarry and mining applications. Supplied with a threaded outlet and a hose connector.
Offered with a 3 year guarantee, the Tsurumi KTD range of submersible drainage pumps are the ideal choice.
Full technical data sheet for the Tsurumi KTD agitator pump range can be viewed by clicking here.

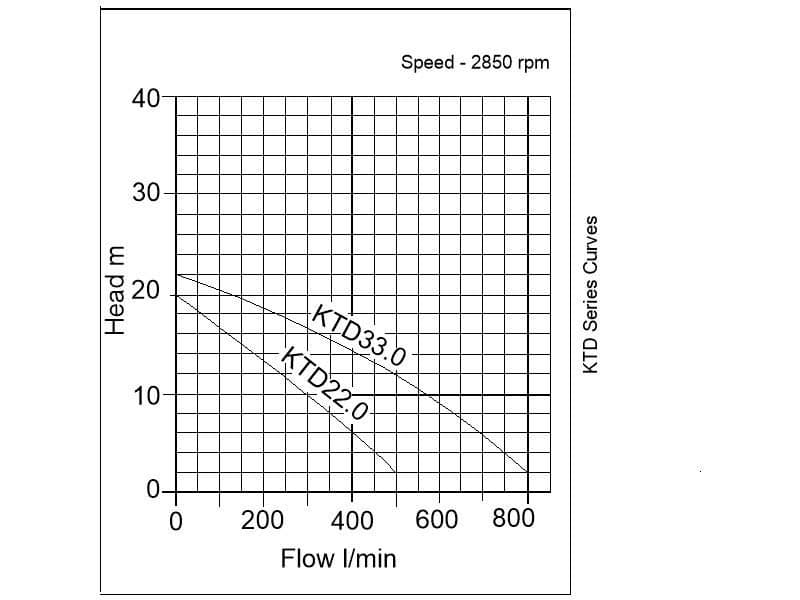

| Model | Outlet (mm) | kW | Flow (l/min) | Head (metres) | Free Passage (mm) | Width (mm) | Length (mm) | Height (mm) | Dry weight (kg) | Packing weight |
| KTD22.0 - 400V | 2" & 50 | 2 | 500 | 20 | 8.5 | 235 | 221 | 519 | 38 | 42 |
| KTD33.0 - 400V | 3" & 80 | 3 | 800 | 22 | 8.5 | 297 | 266 | 654 | 65 | 75 |
Customer reviews
-
Brand:Tsurumi
-
Condition:New
-
Product Code:10101199
-
Weight:38kg
