Manufactured by Tsurumi pumps, the KTVE range offer an automatic option to our standard KTV series of drainage pumps, without the need for external control panels and cumbersome float switches.
The KTVE series are a range of heavy-duty drainage pumps that provide exceptional wear resistance to maximise performance and minimise maintenance during operation in the worst possible conditions.
The design features a pump casing and a motor frame in cast-iron and an open impeller in chromium iron to provide exceptional wear resistance against sand, silts and slurry.
A robust sensor probe is mounted in a durable, moulded rubber bracket and, for added protection, it is positioned within the footprint of the pump base. Once the water level reaches the probe, the pump will start and continue to operate for one minute after the water falls below it. However, if the water level touches the probe within this time, the stop signal is cancelled and the pump continues to run until the water is cleared.
All models of the Tsurumi KTVE are supplied with 20 metres of heavy duty rubber power cable, except the 0.75kW models which are supplied with 10 metres. All models are supplied with a threaded outlet and a hose connector. IDS (individually screened cable) is available, at an extra cost, on 3.7kW and 5.5kW models, for quarry and mining applications.
Offered with a 3 year guarantee, the Tsurumi KTVE range of submersible drainage pumps are the ideal choice.
Full technical data sheet for the Tsurumi KTVE automatic pumps can be viewed by clicking here.

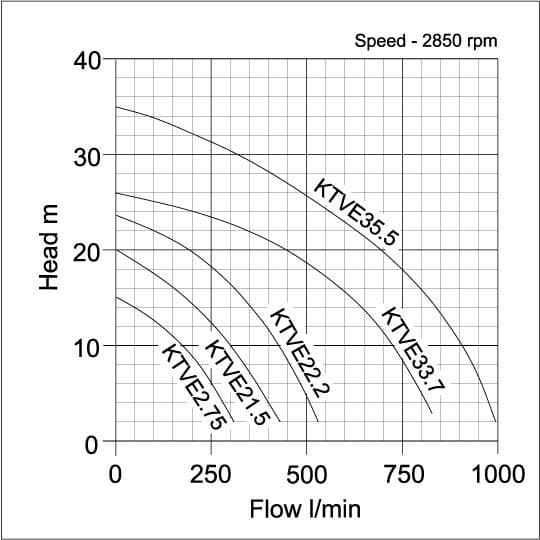

| Model | Outlet (mm) | kW | Flow (l/min) | Head (metres) | Free Passage (mm) | Dia x H (mm) | On Level (mm) | Off Level (mm) | Dry weight (kg) | Packing weight |
| KTVE2.75 | 2" BSPM & 50 | 0.75 | 320 | 15 | 6 | 200 x 417 | 204 | 65 | 12.7 | 18.2 |
| KTVE21.5 | 2" BSPM & 50 | 1.5 | 425 | 20 | 8.5 | 240 x 486 | 235 | 80 | 22 | 28.3 |
| KTVE22.2 | 2" BSPM & 50 | 2.2 | 525 | 24 | 8.5 | 240 x 486 | 235 | 80 | 25 | 30.75 |
| KTVE33.7 | 3" BSPM & 80 | 3.7 | 830 | 26 | 8.5 | 285 x 585 | 297 | 90 | 40 | 46.9 |
| KTVE35.5 | 3" BSPM & 80 | 5.5 | 980 | 35 | 8.5 | 300 x 620 | 327 | 90 | 52 | 65 |
Customer reviews
Brilliant quality and with the built in sensor probe it saved us a fortune as we did not have to buy the control panels and float switches which I was dreading. Thank you to Henry Pumps for the excellent advice. Will shop again.
Neil Roberts | Bayston Hill | April 2019
-
Voltage:400v
-
Brand:Tsurumi
-
Condition:
-
Product Code:10101069
-
Weight:
