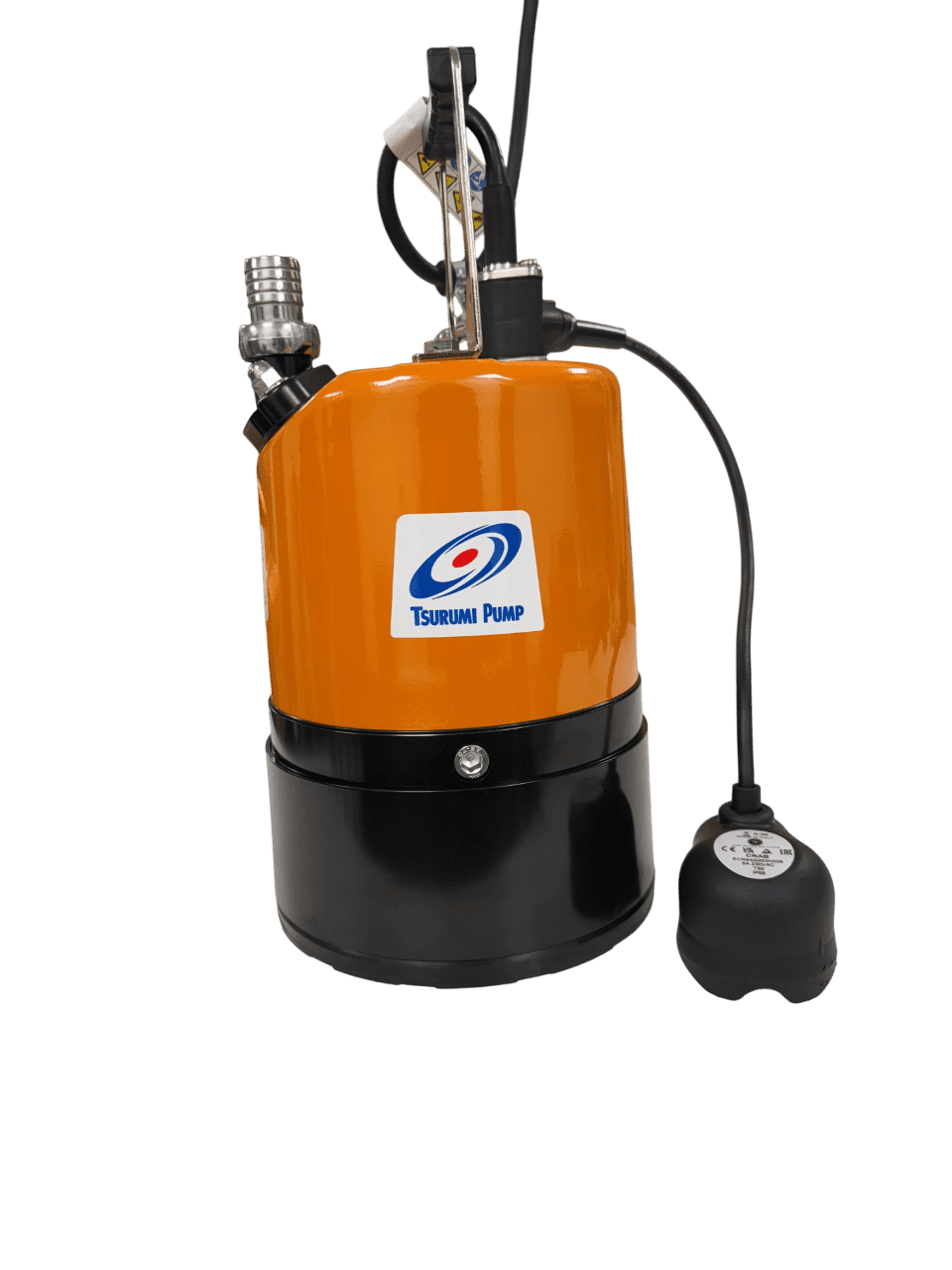

Tsurumi LSC1.4S Automatic Pump with Crab IntelliDrain

Offered exclusively by Henry Pumps, the LSC1.4S Puddle sucker pump with automatic IntelliDrain sensor is able to start automatically on demand and drain water down to as little as 1mm, which makes it suitable for pumping large or small areas of nuisance water found on flat surfaces.

With the addition of the crab sensor, whilst resting on a flat surface, it remains weighted to the bottom, allowing the IntelliDrain sensor to detect the presence of water on the floor.  A magnetic key is supplied which allows the user to adjust the delay time of the start and stop sequence according to your own needs at site level.

The factory settings for the IntelliDrain sensor are that the pump turns on 5 seconds after the sensor detects water and turns off 30 seconds after the sensor no longer detects water.

Cable length of the IntelliDrain sensor is 30cm.

Requires a minimum of 5mm of water to operate and is required to be primed on initial use.

This Tsurumi LSC pump incorporates a dual position outlet port (available in either 1 inch or 2 inch), to enable the user to position the outlet hose horizontally or vertically and avoid it kinking making this an extremely versatile choice for on site drainage.

For durability, during robust handling, the Tsurumi LSC 1.4S puddle sucker flood pump has a pressed steel outer casing and a cast aluminium pump stand, to offer increased protection of the steel and rubber base plate. A combination of a rubber pump chamber and a urethane vortex impeller enables the design to offer excellent wear resistance in site water applications that contain sand and silt in suspension, thus maintaining performance and reliability over time.

An additional feature of the Tsurumi LSC1.4S is an integral swing check valve to prevent back flow of water from the discharge hose. Quality is further enhanced with a 403 stainless steel shaft that is fitted with an ultra hard-wearing twin mechanical seal (inboard: silicon carbide-silicon carbide) which runs in a patented oil chamber that has an oil lifter to maintain seal lubrication during operation in any position.

This feature, combined with the water and air cooling route to the top outlet, allows the Tsurumi LSC1.4S puddle pump to operate for extended periods with little or no water.

Utilised extensively by hire companies, utilities and flood control companies.

Supplied with 10 metres of heavy duty rubber power cable.

This IntelliDrain system is assembled and supplied exclusively by Henry Pumps Ltd.
Manufacturer warranties for individual components apply separately, with full Henry Pumps after-sales support provided for the complete system.

Note: The Henry Pro IntelliDrain™ system is assembled by Henry Pumps Ltd using genuine Tsurumi and Technoplastic components. Tsurumi and Tecnoplastic are registered trademarks of their respective owners and are not affiliated with this product
