Utility Box Under Sink Pump Station

T-T Utility Box – Compact Wastewater Collection and Pumping System for Domestic & Light Commercial Use

The T-T Utility Box is a versatile, pre-assembled wastewater pumping station designed for collecting and discharging grey water from domestic and light commercial applications. Whether it's from washing machines, showers, sinks, or floor drains, this unit offers a plug-and-play solution for areas without gravity drainage or where wastewater needs to be lifted to a higher level.

Ideal for basements, utility rooms, kitchens, and small commercial premises, the T-T Utility Box is both space-saving and easy to install, providing reliable and hygienic operation where conventional drainage is not possible.

Complete Wastewater Handling – All in One Compact Unit

This self-contained pumping station includes a durable polypropylene tank, integrated submersible pump, float switch, and non-return valve—all pre-wired and ready for use. Designed for quick deployment, the T-T Utility Box helps eliminate the need for major building works, making it a cost-effective and efficient solution for grey water management.

Key Features of the T-T Utility Box:

✅ Collects Grey Water from Multiple Sources – Ideal for utility sinks, showers, washing machines, kitchen drains, and more
✅ Fully Pre-Assembled – Includes pump, float switch, and pipework – ready to install and operate
✅ Compact & Lightweight – Fits easily in tight spaces such as under sinks or behind appliances
✅ Durable Polypropylene Construction – Corrosion-resistant and built to last
✅ Automatic Operation – Float switch controls pump start/stop based on water level
✅ Built-In Non-Return Valve – Prevents backflow into the tank
✅ Low-Noise Operation – Suitable for use in domestic environments

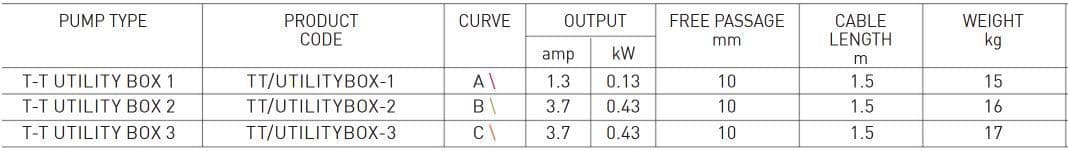

Technical Specifications:

• Pump Voltage: 230V (single phase)

• Pump Type: Submersible, automatic with float switch.

• Tank Material: High-density polyethylene

• Tank Capacity: Approx. 10 litres

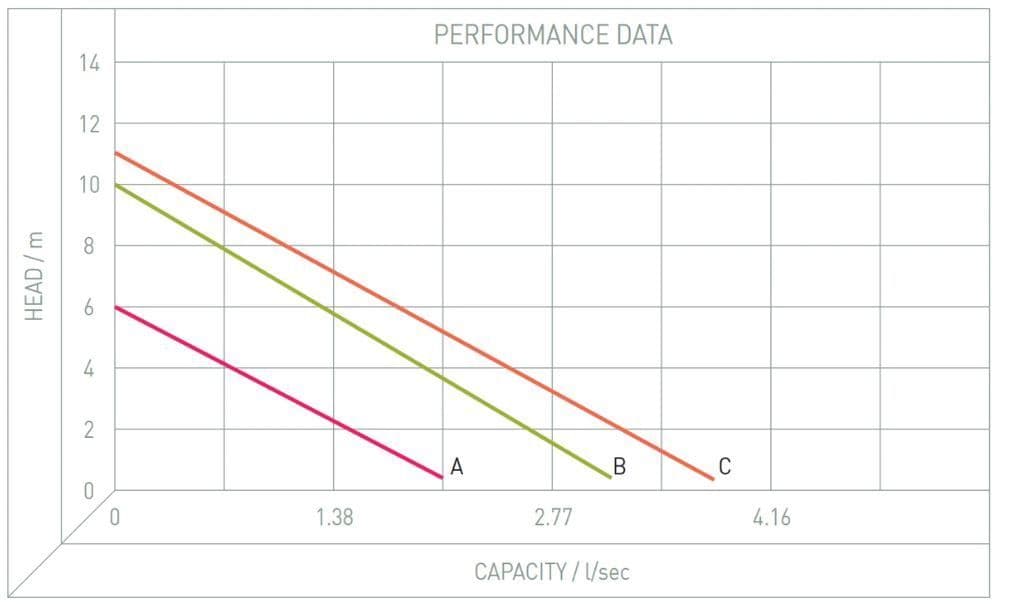

• Max Flow Rate: Up to 5 l/sec

• Max Head: 11 metres (Box 3)

• Inlet Connection: Multiple entries.

• Outlet Connection: 32mm

• Dimensions: Approx. 470mm (L) x 400mm (W) x 420mm (H)

• Cable Length: 1.5 metres

• Weight: Approx. 10 kg

• Audible alarm for critical high water level.

• Fitted with one shower inlet, only 80mm off the floor.

• Separate connection for washing machine.

Perfect for:

• Basements and Cellars Without Gravity Drainage

• Utility Rooms and Kitchens

• Washing Machine and Dishwasher Drainage

• Showers and Sinks Below Drain Level

• Small Offices, Cafés, and Shops

Compact, Clean, and Cost-Effective Wastewater Removal

With its all-in-one design, the T-T Utility Box provides an efficient and hygienic wastewater removal solution, avoiding costly excavations or plumbing alterations. Trusted by professionals and homeowners alike, it ensures peace of mind with automatic, quiet, and dependable operation.
