V-Flow ATEX-Certified Sewage Pump

V-Flow EExd IIB T4 Submersible Sewage Pumps – ATEX-Certified for Hazardous Solids Handling

The V-Flow EExd IIB T4 Submersible Pump Range, available from Henry Pumps, is an ATEX-certified explosion-proof sewage and effluent pump specifically engineered for use in hazardous and potentially explosive environments. Featuring a powerful vortex impeller, this range offers exceptional solids handling and non-clog performance, making it ideal for wastewater, sludge, and chemically aggressive fluids.

Explosion-Proof Pumps for Zone 1 & Zone 2 Areas

Certified to ATEX Directive 2014/34/EU and classified EExd IIB T4, the V-Flow range is flameproof and suitable for explosive atmospheres in Zone 1 hazardous areas. These pumps are designed for maximum safety in industries where vapours, gases, or volatile substances are present—such as oil & gas, chemical processing, and explosive wastewater systems.

Key Features of the V-Flow EExd Pump Range:

• ✅ ATEX-Certified – EExd IIB T4 – Fully compliant for use in hazardous zones with flammable gases.

• ✅ Vortex Impeller Design – Offers superior solids handling and reduces risk of clogging.

• ✅ Explosion-Proof Motor Enclosure – Prevents internal ignition sources from escaping.

• ✅ Double Mechanical Seal in Oil Bath – Provides excellent protection against fluid ingress.

• ✅ Robust Cast Iron Construction – Engineered for industrial durability and longevity.

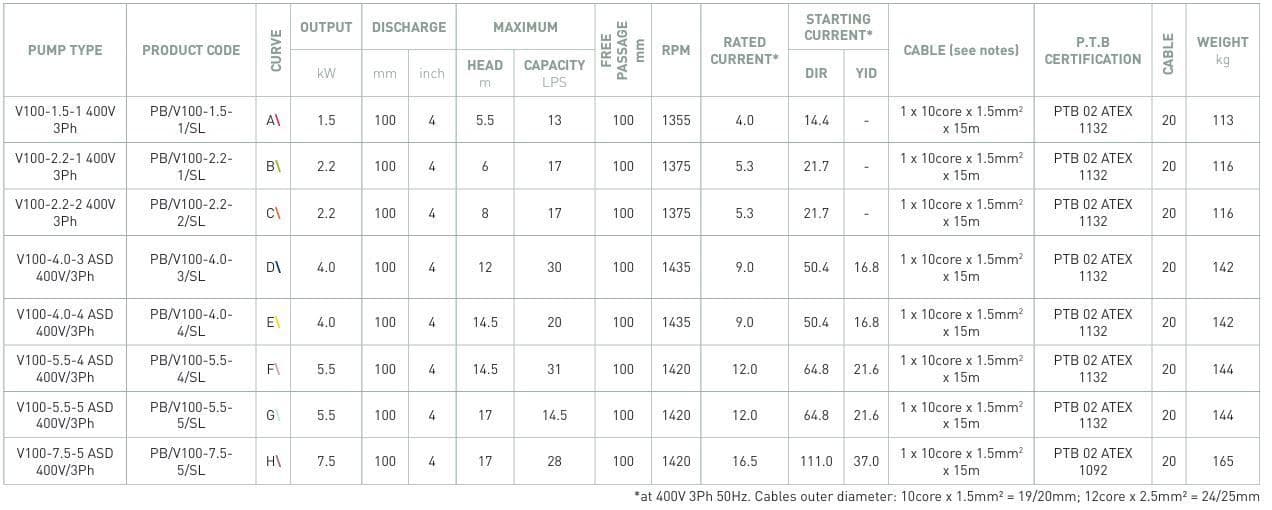

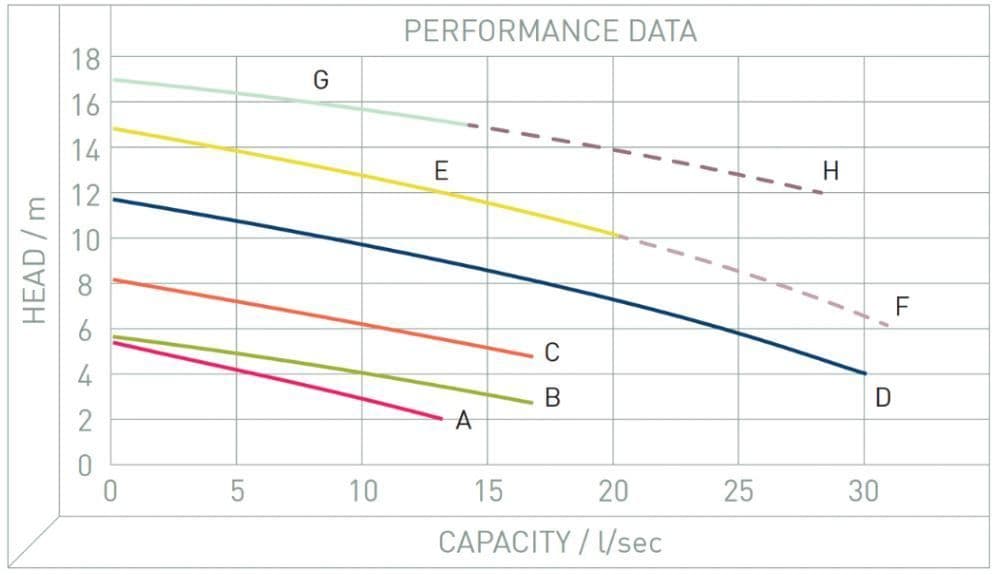

Technical Specifications:

• Flow Rate: Up to 1,860 litres per minute

• Maximum Head: Up to 17 metres

• Motor Power: 1.5kW to 7kW

• Voltage: 400V three-phase

• Solids Handling: Up to 100mm

• Discharge Size: DN100

• ATEX Classification: EExd IIB T4 (Temperature Class T4, Gas Group IIB)

Typical Applications:

• Hazardous area sewage and wastewater systems

• Chemical and petrochemical effluent

• Oil refineries and fuel transfer sites

• Mining and offshore facilities

• ATEX-rated pump chambers and lift stations

• Industrial sludge and dirty water transfer

Why Choose Henry Pumps for Explosion-Proof Wastewater Pumps?

At Henry Pumps, we supply fully certified ATEX-rated vortex pumps for challenging, safety-critical environments. The V-Flow EExd IIB T4 range is trusted across the UK for its unmatched reliability in explosive and corrosive applications—backed by our technical support and nationwide delivery service.

⚠️ Need a pump that handles solids safely in hazardous zones?
The V-Flow EExd delivers peace of mind, power, and performance. Contact us today to discuss your project requirements.  Contact us below to discuss the exact model that suits your requirements.
