The Viscomat is a self-priming rotary vane pump for the transfer of oils and lubricants available in both 1phs and 3phs.
It has an adjustable bypass valve (which protects the pump for up to 2 minutes during closed valve conditions).
Oils up to 500 centistokes, or ranging from SAE 10W up to SAEW/140 (gear oil), can be pumped, but flow rate will alter depending on viscosity and temperature of the oil in question (NB published performance based on 80 W oil at 20ºC, no foot valve and 2 metre x 25mm/1 suction hose).

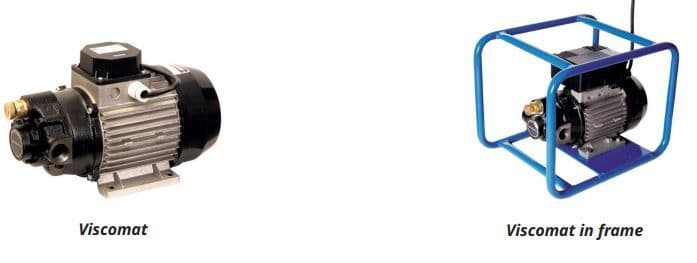

Supplied free-standing or with a crash frame as an optional extra.

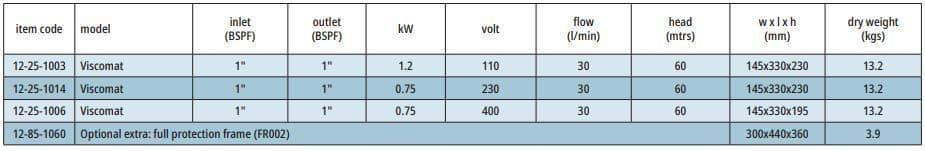

Max flow: 30 l/min.
Max head: 60 mtr.
Weight: 13.2kg.
Ports: 1 inch BSP female thread.
Motor: 1phs - 110v & 230v. 3phs - 400v.
It MUST NOT pump diesel, water, petrol, chemicals, solvents or Edit Products with a low flash point.
Should you prefer to checkout using PayPal, Stripe or Apple Pay then simply add the Edit Product to your cart as normal, select "checkout securely" and from the order summary page select the "Alternative Payment Methods" button at the top right. This Edit Product is also available to purchase with 0% interest free credit over 4 months by using PayPal credit through the alternative checkout menu.
Customer reviews
-
Condition:New
-
Product Code:12251003
-
Weight:13.2kg
