Water Flow Meter

Mechanical paddle wheel water flow meter ideal for clean, dirty, muddy, sandy and waste water applications.

The VuAquaWPI-SDC is a paddle wheel mechanical water flow meter with dry type dial totaliser counter suitable for irrigation and agricultural applications available in sizes from DN50(2) to DN300 (12) flange connections PN16.

Key Features:

Paddle wheel water flow meter type (Undershot design)
Suitable for sandy or dirty irrigation water
Dry dial (frost resistant)
Meter body material is epoxy coated iron
Pulse Output option: Vmax=24AC/DC, Imax=0.01A
Replaceable mechanism, simply leave body in line
DIN flanged connections Maximum pressure of 16 bar
Maximum temperature of 50°C
Security/tamper evident wire lock & seal

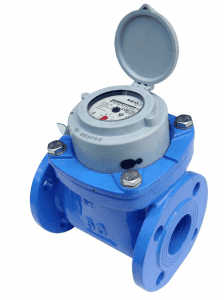

All of the mechanical water flow meters in this section are supplied on PN16 flange connections as per the photograph.  Should you wish to use these with Bauer type connections we do hold an extensive stock of flange to Bauer adapters available for sale in our hose and accessories section.

The water flow meters in this section also benefit from a replaceable meter mechanism offering you peace of mind and assurances that this is a sound, long term investment.

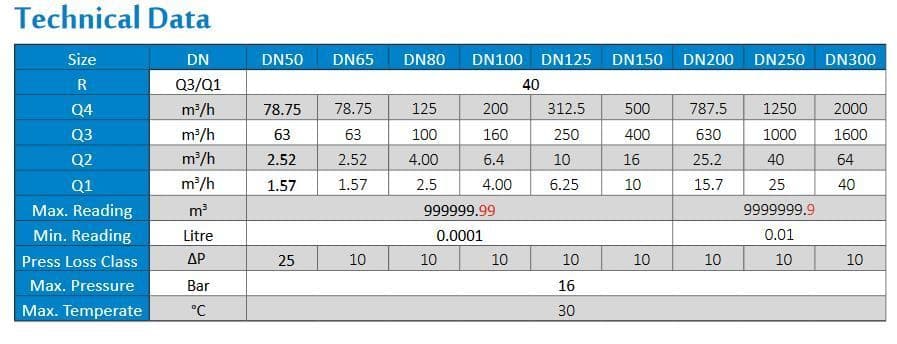

The full technical data sheet for our water meters can be viewed by clicking here.
