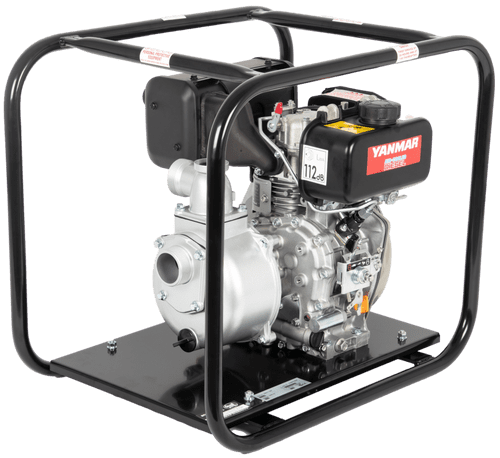

Yanmar-Powered DE50 & DE80 Diesel Water Pumps – 2-Inch & 3-Inch
Diesel Site Pumps for Construction, Utilities and Flood Response
The DE-50XD YR and DE-80XD YR combine self-priming centrifugal pumps with Yanmar L48V four-stroke diesel engines, providing portable water-transfer capability for construction sites, civil engineering, utilities and outdoor flood-response work.
Choose the 2-inch DE50 for general-purpose site drainage, or the 3-inch DE80 where greater water-transfer capacity is required. Both operate independently of mains electricity and use recoil pull starting, making them practical options for temporary installations and locations without an electrical supply.
A lightweight aluminium pump housing is paired with a cast iron impeller and volute for increased wear resistance. The engine and pumping assembly sit within a protective tubular steel frame with anti-vibration mounts.
Yanmar L48V Diesel Engines | Recoil Start | 2-Inch or 3-Inch | Cast Iron Pumping Components | Protective Carry Frames

Why Choose a Yanmar-Powered DE Pump?
- Diesel-powered operation: A practical option for outdoor sites where diesel equipment is preferred and mains electricity is unavailable.
- Two water-transfer capacities: Select the pump around the required flow, delivery head and hose arrangement.
- Wear-resistant pumping components: Cast iron impellers and volutes are combined with carbon–ceramic mechanical seals.
- Protected framed construction: The surrounding steel frame assists handling and helps protect the engine and pump during movement between jobs.

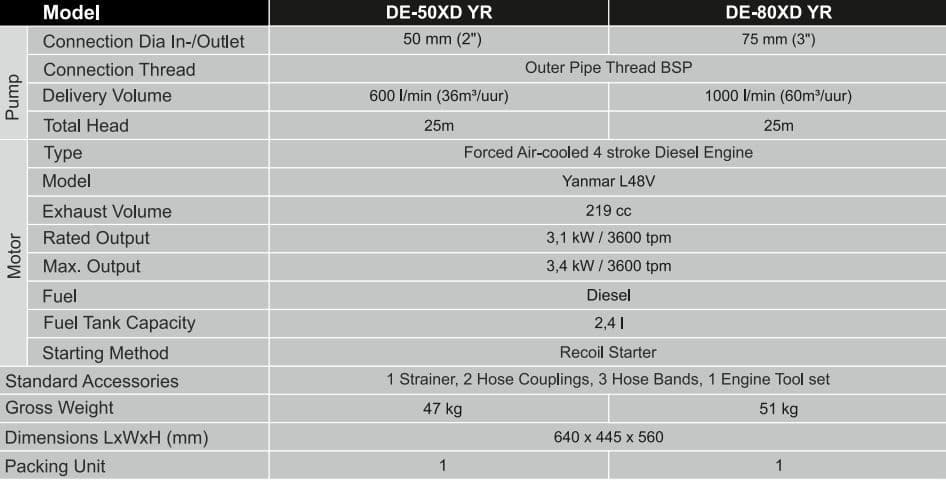

Model Comparison and Technical Specifications
| Specification | DE-50XD YR — DE50 | DE-80XD YR — DE80 |
|---|---|---|
| Pump type | Self-priming centrifugal | Self-priming centrifugal |
| Inlet connection | 2-inch BSP male | 3-inch BSP male |
| Outlet connection | 2-inch BSP male | 3-inch BSP male |
| Maximum published flow | 600 litres/minute | 1,000 litres/minute |
| Maximum flow in m³/hour | 36m³/hour | 60m³/hour |
| Maximum total head | 25 metres | 25 metres |
| Supplier-listed solids capacity | 7mm | 7mm |
| Engine | Yanmar L48V | Yanmar L48V |
| Engine type | Air-cooled, four-stroke diesel | Air-cooled, four-stroke diesel |
| Engine displacement | 219cc | 219cc |
| Starting method | Recoil pull start | Recoil pull start |
| Electric start | Not fitted | Not fitted |
| Operating control | Manual | Manual |
| Fuel | Diesel | Diesel |
| Fuel tank capacity | 2.4 litres | 2.4 litres |
| Oil Alert | Not fitted to the listed configuration | Not fitted to the listed configuration |
| Pump housing | Aluminium | Aluminium |
| Impeller and volute | Cast iron | Cast iron |
| Mechanical seal | Carbon–ceramic | Carbon–ceramic |
| Frame | Tubular steel with anti-vibration mounts | Tubular steel with anti-vibration mounts |
| Published dimensions, L × W × H | 640 × 445 × 560mm | 640 × 445 × 560mm |
| Published gross weight | 47kg | 51kg |
| Operating location | Outdoors only | Outdoors only |
Maximum flow and maximum head are separate figures. Neither model delivers its maximum flow at 25 metres head.
The weights above are published gross weights, not verified dry pump weights. Plan handling and transport for the complete equipment being moved.
DE50 or DE80: Which Model Should You Choose?
DE50 — 2-Inch General-Purpose Site Drainage
The DE-50XD YR has 2-inch connections and a maximum published flow of 600 litres per minute.
It is the smaller option for drainage pits, collection areas and water-transfer jobs where its performance meets the required duty. A 2-inch hose arrangement may also be more convenient where the additional capacity of a larger pump is unnecessary.
DE80 — 3-Inch Higher-Volume Water Transfer
The DE-80XD YR increases maximum flow to 1,000 litres per minute, with 3-inch connections.
Consider it for larger water volumes and drainage duties where the DE50 cannot provide the required delivery. Its larger connections need appropriately sized hoses to make effective use of the additional capacity.
Both models have the same 25-metre maximum head and 7mm listed solids capacity. Moving to the DE80 increases flow capability; it does not increase the maximum pressure or the size of debris the pump can handle.
Site Water and Floodwater — Within the Pump’s Limits
The DE range is suited to clear and suitably dirty site water containing small particles within its 7mm limit.
Typical applications include construction drainage, utilities work, civil-engineering excavations and removing accumulated outdoor floodwater. The framed construction also suits equipment that needs to be transported between working areas.
However, these are not dedicated sewage, trash or slurry pumps. Thick mud, wipes, long fibres and concentrated abrasive mixtures require a different assessment.
The size, shape and concentration of material all matter. A 7mm solids rating does not mean that every liquid containing particles smaller than 7mm is suitable.
Keep the correct intake strainer fitted and clear of settled debris. For floodwater, check for sewage, fuel or chemical contamination before choosing the pump.
Understanding Flow, Head and Suction Lift
The DE80 does not deliver 1,000 litres per minute at 25 metres head. Available flow decreases as the head required by the installation increases.
The complete pumping duty includes the elevation difference between the source water surface and discharge point, resistance through the suction and delivery hoses, and any pressure needed at the outlet.
The 25-metre total-head figure is not a suction-lift rating. A surface-mounted pump cannot draw water from a source 25 metres below it simply because it has that delivery-head capability.
Position the pump as close to the source water level as safely practical. Keep the suction line short and airtight, and allow for the water level falling during pumping.
Henry Pumps can help assess the complete route before you select the pump and hoses.
Recoil-Start Diesel Power
Both listed versions use a Yanmar L48V diesel engine with recoil pull starting. They do not include an electric starter.
Use the specified diesel fuel and maintain the engine oil separately, following the instructions supplied with the engine. Do not use petrol or a two-stroke fuel mixture.
The listed DE configurations do not include Oil Alert. Check the engine-oil level before every use rather than relying on an automatic low-oil shutdown.
The 2.4-litre tank capacity is not a guaranteed runtime. Fuel consumption depends on the operating load, engine speed and conditions.
What’s Included?
The selected DE50 or DE80 pump is supplied with its protective frame, intake strainer, two hose couplings, three hose bands and an engine tool set.
Full suction and delivery hose lengths are separate unless expressly added to your order. This is a pump-only listing, not an assembled hose bundle.
A one-litre bottle of engine oil can be selected as an optional addition.
The bottle size is not the engine’s oil-fill capacity. Fill only to the specified level and complete the pre-start checks before operating.
Hose Selection and Priming
Use reinforced, suction-rated hose matching the pump’s inlet size. Ordinary layflat hose is unsuitable for suction because it can collapse under vacuum.
For delivery, use appropriately pressure-rated layflat or reinforced hose. Avoid unnecessary reductions, sharp bends and kinks, particularly over longer runs.
Fill the pump casing with clean water before starting. Self-priming describes the pump’s ability to clear air from a correctly prepared suction arrangement; it does not eliminate the initial water fill.
Keep the strainer submerged and supported clear of loose sediment. Check all suction connections for air leaks and stop the engine if the pump fails to deliver water.
Maintenance and Safe Handling
Check the engine oil, fuel system, intake strainer, hoses and connections before use. Follow Yanmar’s service instructions for the engine, including its oil and filter maintenance requirements.
Clean and drain the pumping section after use as instructed, particularly before storage where freezing could occur.
Support hoses so their weight does not strain the pump connections. Where delivery hoses cross vehicle routes, provide suitable protection: a vehicle compressing a hose can abruptly restrict flow and create damaging pressure surges.
Use appropriate handling equipment and assess the load before moving the pump. A protective frame does not, by itself, establish that the assembly is suitable for one-person lifting.
Important Notes
Never operate the diesel engine indoors or in an enclosed or partly enclosed space. Diesel exhaust contains carbon monoxide and other harmful pollutants. Opening doors or windows does not make indoor operation safe.
Keep the engine outdoors, away from doors, windows and ventilation openings. The pump unit must remain out of the water.
Do not run the pump dry or leave it operating against a closed discharge. These are manually controlled pumps, not automatic water-level or tap-demand systems.
Stop the engine and allow it to cool before refuelling or maintenance. Release system pressure before disconnecting hoses.
Diesel describes the engine’s fuel—not the liquid these pumps are intended to transfer. Do not use them for pumping diesel, petrol, solvents or incompatible chemicals.
Why Buy from Henry Pumps?
Get practical selection advice from an independent pump specialist.
Henry Pumps can help assess the water condition, required flow, suction arrangement and discharge distance, then match the selected pump with suitable hoses and fittings.
Our team can also assist with maintenance guidance and replacement-part enquiries.
Need Help or Advice?
Tell us what the water contains, how far below the pump it sits and where it needs to discharge.
Call 0333 050 3748 or email sales@henrypumps.co.uk for help selecting your Yanmar-powered diesel pump and accessories.
Customer reviews
-
Product Code:050-070
-
Weight:47kg
Suitable for
- Construction and groundworks dewatering
- Utilities and civil-engineering drainage
- Outdoor floodwater removal within solids limits
- Site-water transfer and tank emptying
Not suitable for
- Indoor or enclosed-space operation
- Sewage containing wipes and fibrous waste
- Thick sludge and concentrated abrasive slurry
- Fuel, solvent and aggressive-chemical transfer
Frequently Asked Questions
The DE50 has 2-inch connections and a maximum published flow of 600 litres per minute. The DE80 has 3-inch connections and increases maximum flow to 1,000 litres per minute.
Both use a Yanmar L48V diesel engine and have the same 25-metre maximum head and 7mm listed solids capacity.
Choose according to the flow needed at your actual operating head, rather than assuming that the larger model also provides more pressure.
The versions listed here use recoil pull starting. Electric start is not fitted.
They operate using their own diesel engines and do not require mains electricity or a separate generator.
Follow the Yanmar starting procedure supplied with the equipment.
They can handle suitable site water containing small particles within the 7mm listed limit.
That does not make them suitable for raw sewage, wipes, dense sludge or heavily abrasive mixtures. Particle concentration and shape matter as well as size.
Keep the supplied strainer fitted and ask Henry Pumps to assess the application where contamination is substantial.
Yes. Fill the pump casing with clean water before starting the engine.
Self-priming does not make starting with an empty casing safe. The suction connections must also be airtight and the intake properly submerged.
Re-prime after draining the pump or losing prime. Stop and investigate if the engine runs but no water is delivered.
Potentially, where the water and suction arrangement are suitable—but the engine must remain safely outdoors.
Diesel power does not make indoor operation safe. Never run the engine inside a basement, garage, shed or enclosed building.
The suction hose must reach the water from a safe outdoor position, away from openings through which exhaust could enter.
